Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 2
Output Type N-Channel
Voltage - Load 4.5 V to 36 V
Supply Voltage - Operating Not Required
Current - Output (Max) 42A
Rds On (Typ) 12 mOhm (Max)
Input Type Non-Inverting
Features Auto Restart
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)

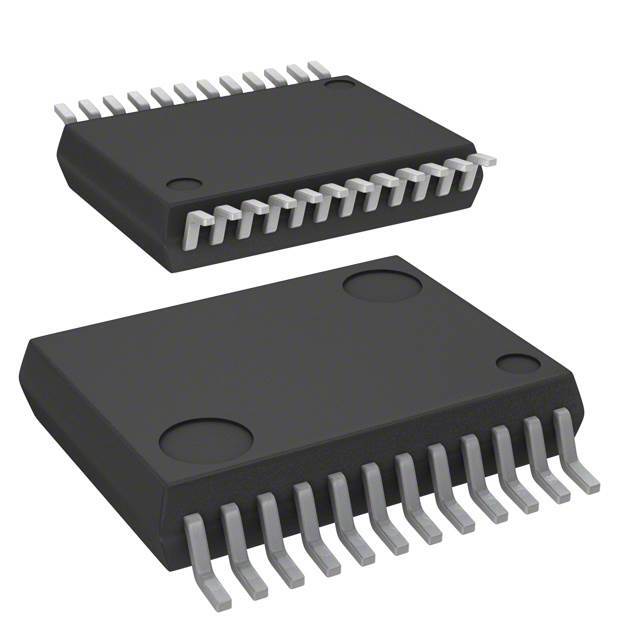

Case / Package PowerSSO-24
Win Source Part Number 036434-VND5012AKTR-E
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VND5012AK
Introduction Date September 01, 2004
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian VND5012AKTR-E CAD Model

Description

The VND5012AKTR-E is a sophisticated double channel high-side driver manufactured by STMicroelectronics. It is designed to drive automotive loads with high efficiency and reliability. This component is part of the VIPower M0-7 series, which is well-regarded for its performance in power management applications, particularly within the automotive industry.

Key Features

  • High-Side Switch: The VND5012AKTR-E operates as a high-side switch, allowing it to efficiently control power to the load without the need for complex ground connections.
  • Current Rating: It can handle a continuous load current of up to 12A, making it suitable for a wide range of high-power applications.
  • On-Resistance: The on-resistance of this high-side driver is exceptionally low, which translates to reduced power loss and improved overall efficiency.
  • Protection Features: It comes with a suite of protection features, including overcurrent, overtemperature, and load dump protection, ensuring the safety and longevity of both the device and the application it is used in.
  • Diagnostic Functions: The VND5012AKTR-E includes diagnostic functions that provide feedback on the status of the driver and the load, facilitating maintenance and troubleshooting.
  • CMOS Compatible Inputs: The inputs are compatible with standard CMOS logic levels, making it easy to interface with microcontrollers and other control devices.
  • MultiSense Analog Feedback: This feature allows for monitoring of the load current, supply voltage, and temperature, providing valuable data for system management.

Applications

The VND5012AKTR-E is ideal for a variety of automotive applications such as controlling motors, lights, heaters, and other high-current loads. Its robust design and protective features make it particularly well-suited for harsh automotive environments where reliability is paramount.

Quality and Reliability

STMicroelectronics is known for its commitment to quality, and the VND5012AKTR-E is no exception. It is designed to meet the stringent requirements of the automotive industry, including extended temperature ranges and resistance to shock and vibration. With its advanced technology and rigorous testing, the VND5012AKTR-E is a product that engineers can trust for their critical automotive designs.
