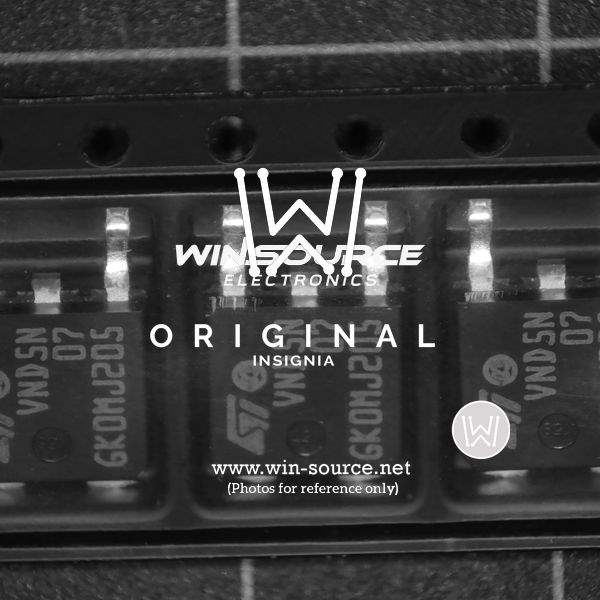

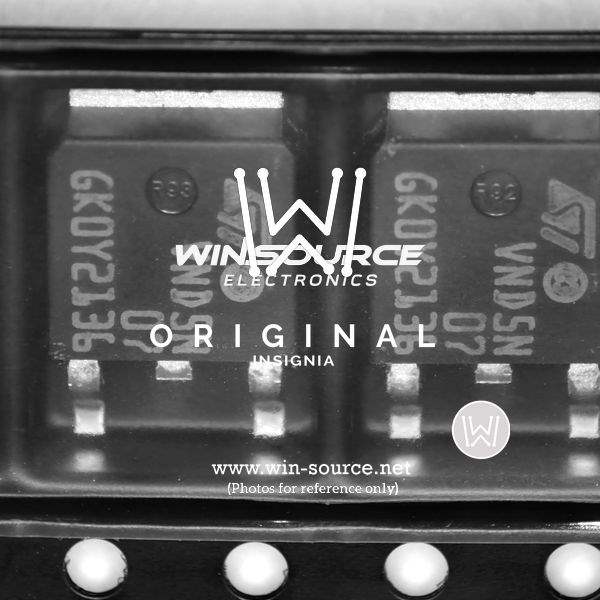

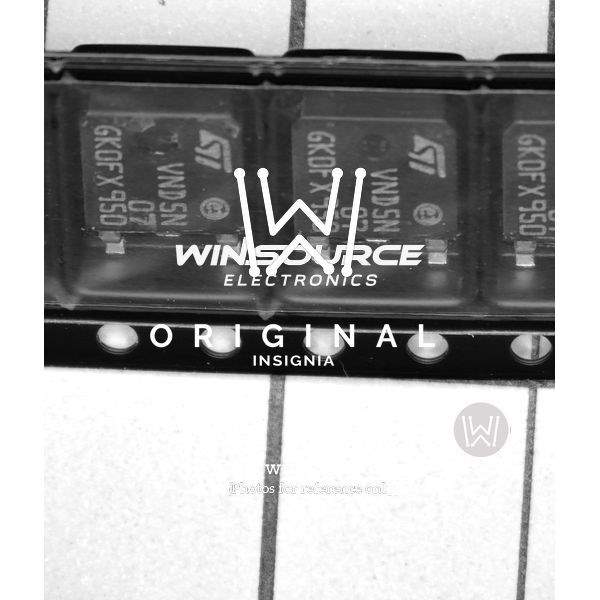

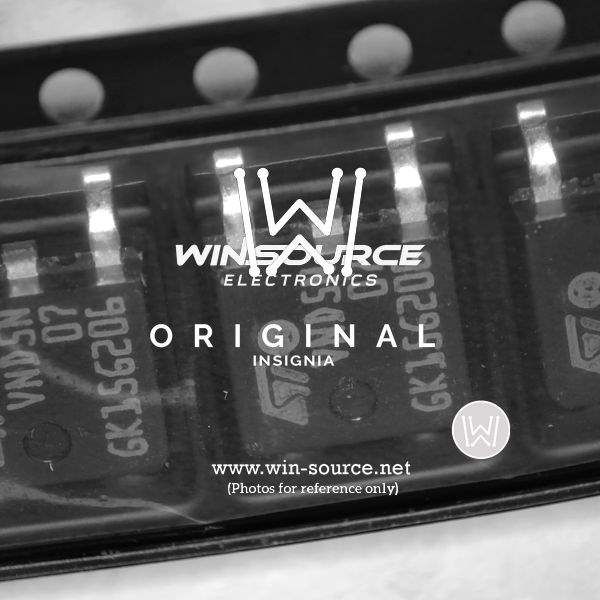

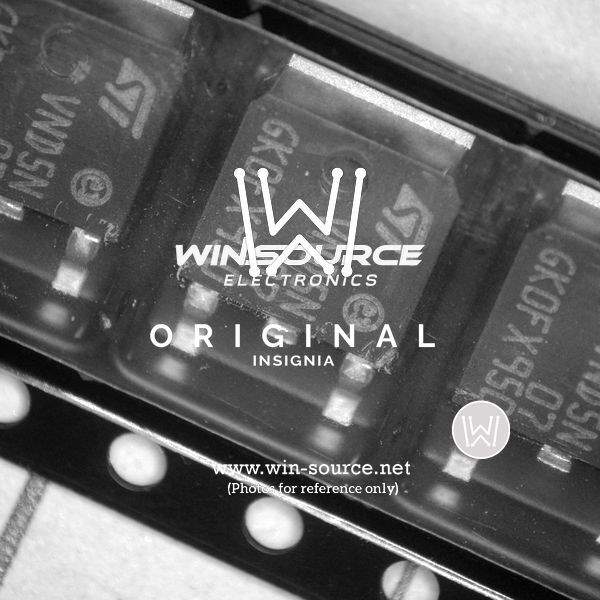

STMicroelectronics VND5N07TR-E - MOSFET

The VND5N07TR-E from STMicroelectronics is a robust Power MOSFET designed for high-performance automotive applications. This device is part of the OMNIFET II family, which is known for its fully autoprotected power MOSFETs. The VND5N07TR-E is particularly suitable for use in environments where high reliability and efficiency are paramount.

Key Features

• High Current Capability: This MOSFET can handle a continuous drain current of up to 5A, making it suitable for heavy-duty operations.
• High Voltage Tolerance: With a drain-source voltage (Vds) of 70V, it offers a good safety margin for applications subject to voltage spikes.
• Thermal Protection: The device includes an overtemperature shutdown feature to prevent damage from overheating.
• Short Circuit Protection: The VND5N07TR-E is equipped with self-limiting of the output current to a safe level in case of unexpected short circuits.
• Current Limitation: It has a built-in current limiter to safeguard the device and the load from excessive current.
• Low Power Dissipation: With its optimized design, the power dissipation is kept low, which enhances overall system efficiency and reliability.
• Linear Current Limitation: Provides a predictable behavior under overload conditions, allowing for safer operation.
• Diagnostic Feedback: The device offers status feedback that can be used for diagnostic purposes or to provide system insights.

Applications

The VND5N07TR-E is ideal for a variety of automotive applications, including but not limited to:

• Lamp drivers
• DC motor control
• Relay and solenoid drivers
• Intelligent power switches

With its comprehensive protection features and robust design, the VND5N07TR-E MOSFET from STMicroelectronics is a reliable choice for designers looking to enhance automotive system performance while ensuring safety and durability.
