Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series VIPower
Packaging Reel - TR
Switch Type General
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 4 V ~ 28 V
Current - Output (Maximum) 8A
Rds On (Typ) 140 mOhm
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature Range -40°C ~ 150°C (TJ)

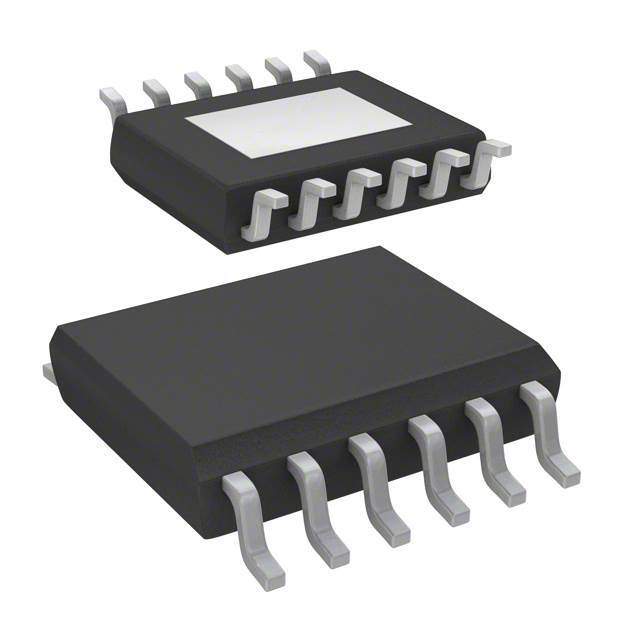

Package 12-LSOP (0.154", 3.90mm Width) Exposed Pad
Manufacturer Package PowerSSO-12
Win Source Part Number 1279608-VND7140AJ12TR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name VND7140
Introduction Date June 18, 2015
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian VND7140AJ12TR CAD Model

Description

STMicroelectronics VND7140AJ12TR Automotive-Grade Double Channel High-Side Driver

The VND7140AJ12TR from STMicroelectronics is a state-of-the-art, double channel high-side driver designed to interface with automotive and industrial applications. This robust component is part of ST's VIPower M0-7 series and is specifically engineered to deliver high performance and reliability for controlling resistive, inductive, and capacitive loads. The device's compact PowerSSO-16 package is ideal for space-constrained applications, while providing efficient heat dissipation and enhanced thermal performance.

One of the standout features of the VND7140AJ12TR is its built-in current sensing capability, which allows for real-time monitoring of the load current. This feature is crucial for systems that require feedback for diagnostics and control, such as automotive ECUs (Engine Control Units). Additionally, the device is equipped with protection functions including overcurrent, overtemperature, and load dump protection, ensuring the safety and longevity of both the driver and the load.

The VND7140AJ12TR operates over a broad voltage range from 5.5V to 28V, making it versatile for various automotive supply voltages. It also boasts an impressive maximum continuous current of 25A per channel, which is ample for driving high-power loads. With its CMOS-compatible input and diagnostic output, the device seamlessly integrates with microcontrollers, providing a user-friendly interface for system control and feedback.

Another significant advantage of the VND7140AJ12TR is its compliance with automotive qualification standards, including AEC-Q100. This ensures the device meets the rigorous demands of the automotive industry, where reliability and performance under harsh conditions are non-negotiable. Whether it's for controlling lights, motors, or other automotive subsystems, this high-side driver is designed to deliver consistent performance in the challenging environment of modern vehicles.

In summary, the VND7140AJ12TR is a highly reliable and efficient solution for driving high-power loads in automotive and industrial applications. Its integrated diagnostics, robust protection features, and compliance with automotive standards make it an excellent choice for designers looking for a high-quality, high-side driver solution.
