Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr STMicroelectronics
Series Automotive, AEC-Q100, VIPOWER™
Package Tape & Reel
Product Status Active
Motor Type - Stepper -
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface PWM
Technology Power MOSFET
Step Resolution -
Applications Automotive
Current - Output 51A
Voltage - Supply 4V ~ 28V
Voltage - Load 4V ~ 28V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 36-PowerFSOP (0.295", 7.50mm Width)
Supplier Device Package PowerSSO-36
Base Product Number VNHD7008
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1352530-VNHD7008AYTR
Ultra Librarian 3D Model Ultra Librarian VNHD7008AYTR CAD Model

Description

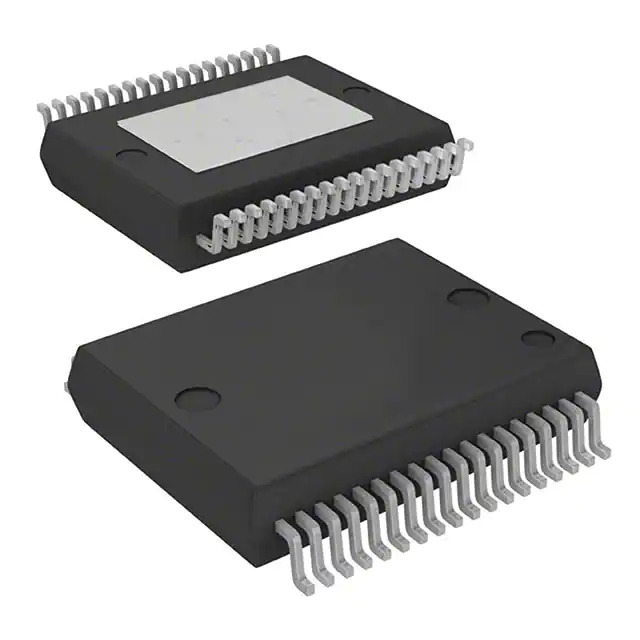

STMicroelectronics VNHD7008AYTR Motor Driver

The VNHD7008AYTR is a cutting-edge motor driver product from STMicroelectronics, designed to deliver high efficiency and performance for automotive applications. This advanced H-bridge driver is part of the VIPower M0-7 series and is specifically engineered to handle a wide range of motor driving applications with ease and reliability.

Constructed with the latest technology, the VNHD7008AYTR is encapsulated in a compact 28-pin PowerSSO package, making it suitable for space-constrained environments while providing robust thermal performance. The device is capable of driving DC motors by providing up to 36V of supply voltage and a continuous current of up to 4A, ensuring it can handle a variety of demanding automotive applications.

One of the key features of this motor driver is its integrated protections, which safeguard the device and the system it is part of. These protections include under-voltage shutdown, over-temperature shutdown, load current limitation, and over-voltage clamp, among others. The VNHD7008AYTR also boasts a status feedback for all the protection features, which is critical for system diagnostics and ensuring the longevity of the motor driver.

The VNHD7008AYTR is designed with flexibility in mind, offering multiple diagnostic functions. This feature allows for real-time monitoring of system performance, making it easier for designers to implement fault detection and system management. Additionally, the motor driver supports both analog and digital inputs, offering designers the flexibility to choose the control interface that best suits their application needs.

With its robust design and comprehensive feature set, the VNHD7008AYTR from STMicroelectronics is an ideal solution for automotive applications that require reliable and efficient motor control. Whether it's for power window systems, seat adjustment, or other automotive subsystems, this motor driver is built to deliver top performance while ensuring system safety and reliability.

Overall, the VNHD7008AYTR motor driver is a testament to STMicroelectronics' commitment to providing innovative and high-quality components for the automotive industry, enabling designers to create advanced, efficient, and reliable automotive systems.
