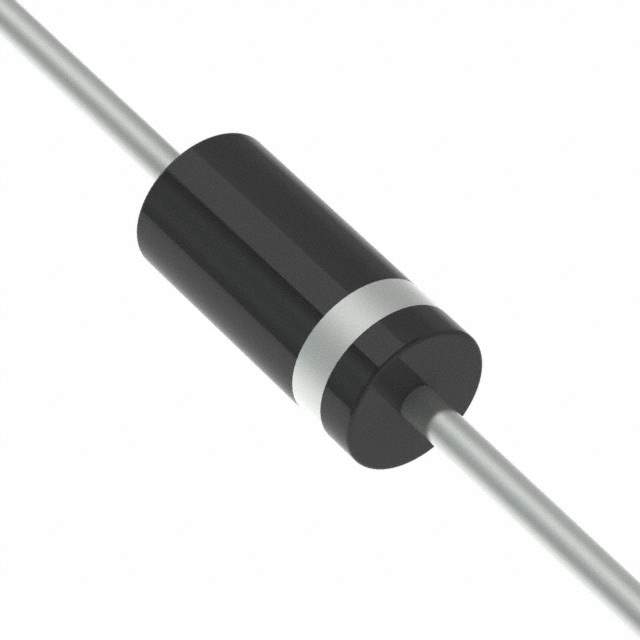

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Taiwan Semiconductor Corporation
Series SA
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 45V
Voltage - Breakdown (Min) 50V
Voltage - Clamping (Max) @ Ipp 72.7V
Current - Peak Pulse (10/1000µs) 7.2A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Base Product Number SA45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SA45AR0G-ND,1801-SA45AR0G,1801-SA45ATR,SA45AR0G,SA45A R0G-ND,SA45A R0G
Standard Package 3,500
Win Source Part Number 1090794-SA45A
Ultra Librarian 3D Model Ultra Librarian SA45A CAD Model

Description

The SA45A Zener type TVS diode from National Semiconductor (TI) is a general-purpose diode with a voltage breakdown of 50V and voltage clamping of 72.7V @ Ipp.

  • Power Peak: 500W
  • Current Peak: 7.2A
  • Package: DO-204AC, DO-15, Axial
  • Mounting: Through Hole
  • Packaging: Tape and Reel
  • Standard Package: 3,500
  • Temperature Range: -55°C to 175°C (TJ)
