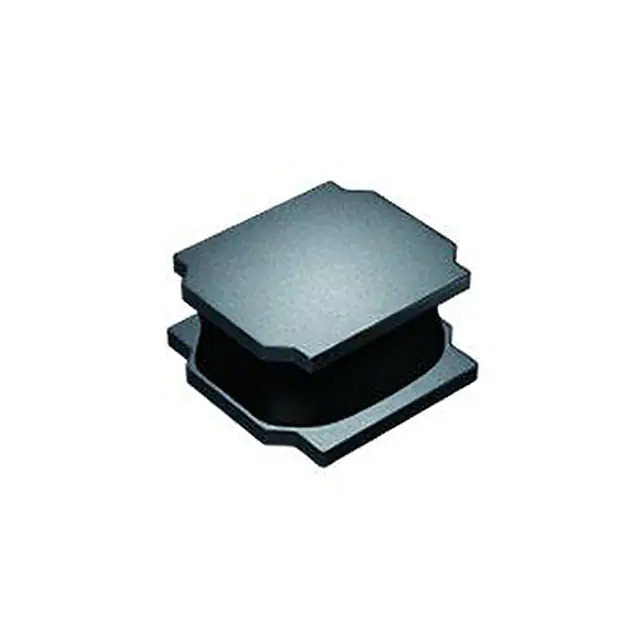

Same model may have multiple batches, images only for reference.

NRV2010T1R5MGF

Name: NRV2010T1R5MGF
Brand: Taiyo Yuden
SKU: 1370624
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NRV2010T1R5MGF
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 1.45A 100MOHM SM
Datasheet	NRV2010T1R5MGF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NR, V Type
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1.5 µH
Tolerance	±20%
Current Rating (Amps)	1.45 A
Current - Saturation (Isat)	1.35A
Shielding	Shielded
DC Resistance (DCR)	100mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Temperature Range - Operating	-25°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1370624-NRV2010T1R5MGF
Ultra Librarian 3D Model	Ultra Librarian NRV2010T1R5MGF CAD Model

Alternative Products

Description

The NRV2010T1R5MGF is a drum core wirewound inductor from Taiyo Yuden's NR, V Type series. The product is the NRV2010T1R5MGF.

Size: 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height: 0.039" (1.00mm)
Operating Temperature: -25°C to 120°C
Tolerance: ±20%
Inductance: 1.5μH
Shielded: Yes
Current Rating: 1.45 A
DC Resistance: 100mOhm
