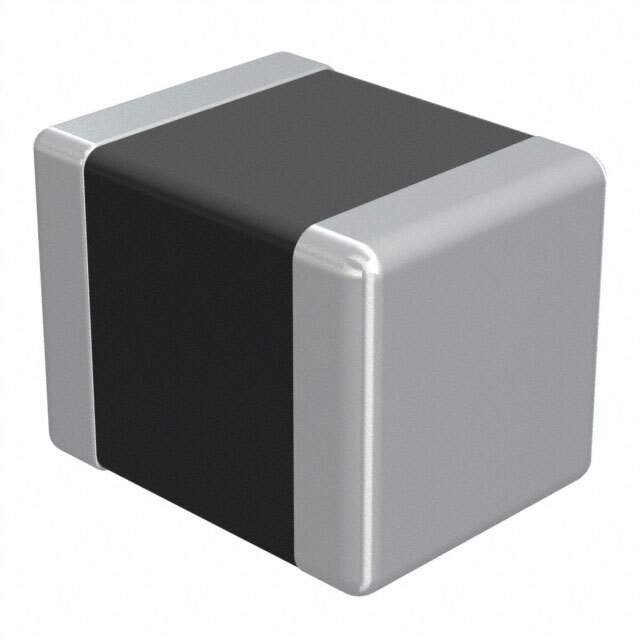

TMK325B7226MM-TR

Part No TMK325B7226MM-TR
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 22UF 25V X7R 1210
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Features 22 µF ±20% 25V Ceramic Capacitor X7R 1210 (3225 Metric)
Manufacturer Taiyo Yuden
Series M
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount, MLCC
Package 1210 (3225 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number CE TMK325 B7226MM-TR, TMK325 B7226MM-TR, 587-2784-2, 587-2784-1, 587-2784-6, TMK325B7226MMTR
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 900391-TMK325B7226MM-TR
Ultra Librarian 3D Model Ultra Librarian TMK325B7226MM-TR CAD Model

Description

The TMK325B7226MM-TR is a multilayer ceramic capacitor (MLCC) manufactured by Taiyo Yuden. This component is designed for various applications within electronic circuits, including decoupling, bypassing, filtering, and energy storage. Its high capacitance value and stable performance characteristics make it a versatile choice for a wide range of applications.

Applications

  • Decoupling: Provides local decoupling for integrated circuits, reducing noise and voltage fluctuations.
  • Bypassing: Bypasses AC signals to ground, minimizing noise and improving signal integrity.
  • Filtering: Filters unwanted frequencies in electronic circuits, enhancing signal quality.
  • Energy Storage: Temporarily stores electrical energy for stable circuit operation.
  • General Purpose Applications: Suitable for use in various electronic circuits requiring a stable capacitor.

Features

  • High Capacitance: Boasts a high capacitance value of 22µF.
  • Compact Size: Comes in a 1210 package size, optimizing board space.
  • X7R Dielectric: Ensures stable performance across a broad temperature spectrum.
  • Voltage Rating: Rated for 16V, accommodating a range of voltage levels.
  • Low ESR: Exhibits low equivalent series resistance for efficient energy transfer.

Benefits

  • Enhanced Circuit Performance: Significantly reduces noise, leading to improved signal integrity and clarity.
  • Improved System Reliability: Provides stable and reliable operation for electronic circuits, preventing malfunctions.
  • Space-Saving Design: Enables the design of more compact and efficient electronic devices.
  • Stable Performance: Maintains a consistent level of performance across fluctuating temperatures and voltages.
  • Extended Lifespan: Guarantees a long operational lifespan, minimizing the need for frequent replacements.

Additional Details

The TMK325B7226MM-TR utilizes a 1210 surface-mount package, facilitating easy integration into printed circuit boards. The X7R dielectric provides capacitance stability within a temperature range of -55°C to +125°C. Key specifications to consider include capacitance, voltage rating, tolerance, and temperature coefficient. This capacitor is ideally suited for applications in consumer electronics, industrial equipment, and automotive systems. Manufactured by Taiyo Yuden, a respected name in electronic components, the TMK325B7226MM-TR offers reliability and performance in demanding applications.
