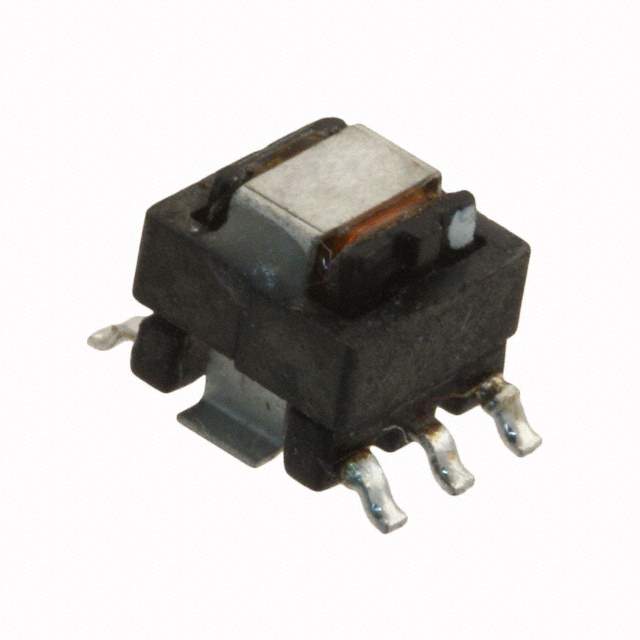

B82801B504A50 Real Image
Same model may have multiple batches, images only for reference.

B82801B504A50

Part No B82801B504A50
Manufacturer TDK Corporation
Catalog OEM Parts (A - B)
Description Current Transformer 1: 50 500VAC 0.0008Ohm Prim. DCR 1.5Ohm Sec. DCR 20000mA Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 20 A
DC Resistance (DCR) 1.5 Ω
Frequency 1 MHz
Height 5.08 mm
Height - Seated (Max) 5.08 mm
Inductance 500 µH
Lead/Base Style Gull Wing
Lead Free Yes
Length 8.13 mm
Mount Surface Mount
Radiation Hardening No
RoHS Compliant
Termination Gull Wing
Width 7.11 mm
Win Source Part Number 1024405-B82801B504A50
Categories OEM Parts(A-B)
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B82801B504A50 CAD Model

Description

The B82801B504A50 is a gull wing termination inductor from TDK Corporation.

  • Current Rating: 20 A
  • Inductance: 500 µH
  • DC Resistance (DCR): 1.5 Ω
  • Length: 8.13 mm
  • Height Seated (Max): 5.08 mm
  • Operating Frequency: 1 MHz
  • Width: 7.11 mm
  • Height: 5.08 mm
  • Mounting: Surface Mount
  • Lead-Free: Yes
  • Operating Temperature Range: -25°C to 85°C
