Same model may have multiple batches, images only for reference.

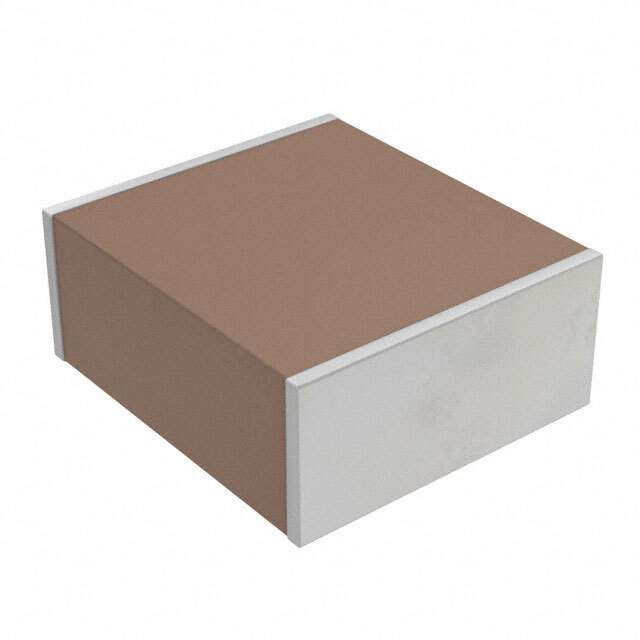

CGA9N4X7R2J224K230KA Real Image
Same model may have multiple batches, images only for reference.

CGA9N4X7R2J224K230KA

Part No CGA9N4X7R2J224K230KA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description Automotive Grade ( Mid Voltage (100 to 630V) )
Datasheet
CGA9N4X7R2J224K230KA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CGA
Packaging Reel - TR
Capacitance 0.22μF
Tolerance ±10%
Voltage Rating DC 630V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Package 2220 (5750 Metric)
Size 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.091" (2.30mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 722953-CGA9N4X7R2J224K230KA
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name CGA9
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian CGA9N4X7R2J224K230KA CAD Model

Description

The TDK CGA9N4X7R2J224K230KA is a surface mount multilayer ceramic capacitor (MLCC) with a capacitance of 0.22μF and a tolerance of ±10%.

  • Capacitance: 0.22μF
  • Tolerance: ±10%
  • Maximum Voltage: 630V
  • Application: Automotive
  • Series: CGA9
  • Package Size: 2220 (5750 Metric)
  • Thickness: 0.091" (2.30mm)
  • Temperature Range: -55°C to 125°C
  • Estimated EOL Date: 2026
