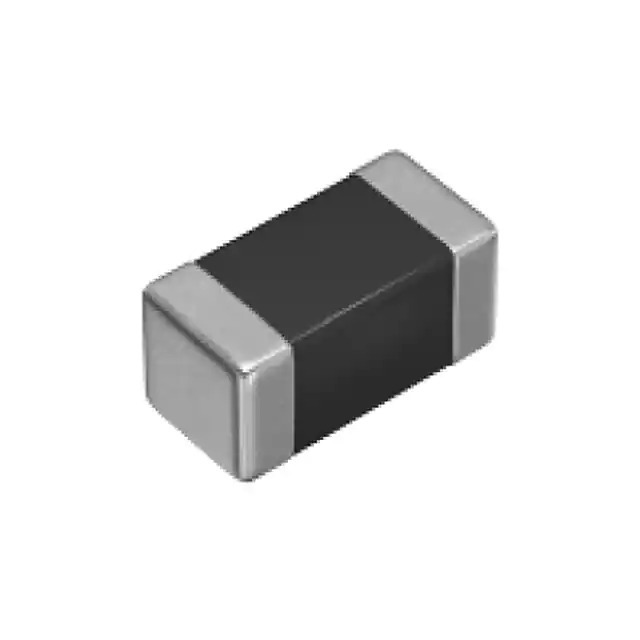

KLZ1608MHR4R7WTD25 TDK Corporation
Same model may have multiple batches, images only for reference.

KLZ1608MHR4R7WTD25

Part No KLZ1608MHR4R7WTD25
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 350MA 650MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series KLZ-HR
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 350 mA
Current - Saturation (Isat) 120mA
Shielding Shielded
DC Resistance (DCR) 650mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 2 MHz
Features Soft Termination
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1369834-KLZ1608MHR4R7WTD25
Ultra Librarian 3D Model Ultra Librarian KLZ1608MHR4R7WTD25 CAD Model

Description

The KLZ1608MHR4R7WTD25 is a multilayer fixed inductor manufactured by TDK Corporation.

  • Inductance: 4.7 µH
  • Current Rating: 350 mA
  • Tolerance: ±20%
  • DC Resistance (DCR): 650 mOhm
  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Operating Temperature: -55°C to 150°C
  • Shielding: Shielded
  • Current Saturation (Isat): 120 mA
  • Series: KLZ-HR
  • Packaging: Tape and Reel
  • Termination: Soft
