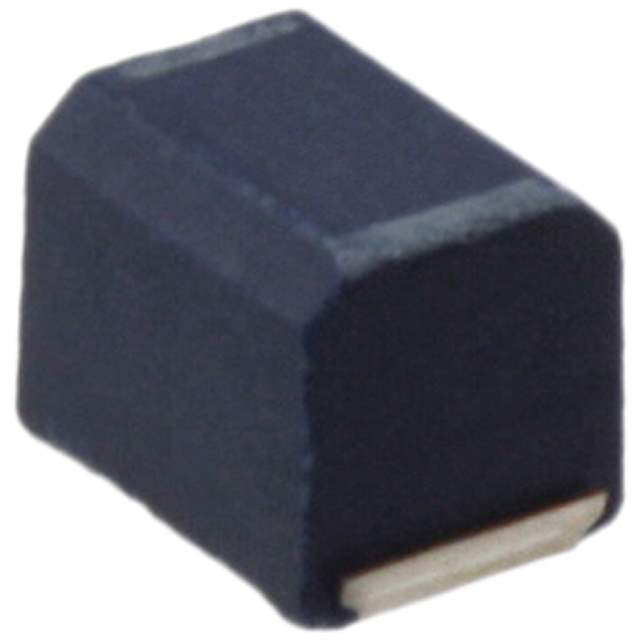

The NL453232T-220J is a wire-wound ferrite inductor manufactured by TDK Corporation. It's designed for use in power circuits for mobile devices such as smartphones, tablets, and wearable devices. This inductor is characterized by its compact size, high inductance value, and excellent current handling capability, making it well-suited for applications where space is limited and efficient power conversion is required.

Applications:

• Power Supplies for Mobile Devices: Used in DC-DC converters and power management circuits in smartphones and tablets.
• Wearable Devices: Employed in power circuits of smartwatches, fitness trackers, and other wearable electronics.
• DC-DC Converters: Utilized as an energy storage element in step-up (boost) and step-down (buck) converters.
• Noise Filtering: Used in noise filtering circuits to suppress unwanted electromagnetic interference (EMI).
• Wireless Charging Circuits: Can be used in wireless power transfer systems.

Features:

• High Inductance Value: Provides efficient energy storage and filtering capabilities.
• Compact Size: Allows for integration into space-constrained mobile device applications.
• Wire-Wound Construction: Offers excellent current handling capability and low DC resistance.
• Ferrite Core: Enhances inductance and provides stable performance over temperature.
• Operating Temperature Range: Designed for reliable operation in a wide range of environmental conditions.
• Surface Mount Device (SMD): Facilitates automated assembly and reduces manufacturing costs.

Benefits:

• Efficient Power Conversion: Improves the efficiency of power supplies, extending battery life in mobile devices.
• Noise Reduction: Filters out unwanted noise and interference, improving signal integrity.
• Stable Performance: Provides consistent and reliable performance over temperature and frequency.
• Compact Design: Enables smaller and more compact mobile device designs.
• Easy Assembly: Surface mount design simplifies assembly and reduces manufacturing costs.

Additional Details:

The NL453232T-220J inductor has an inductance value of 22μH. The package size is 4.5mm x 3.2mm. The DC resistance (DCR) is an important parameter for power inductor, impacting efficiency. The saturation current represents the current at which the inductance drops by a certain percentage (typically 10-30%) due to core saturation. This inductor is typically used in switching frequencies in the MHz range. It's designed to meet strict requirements for performance and reliability in mobile and portable devices.
