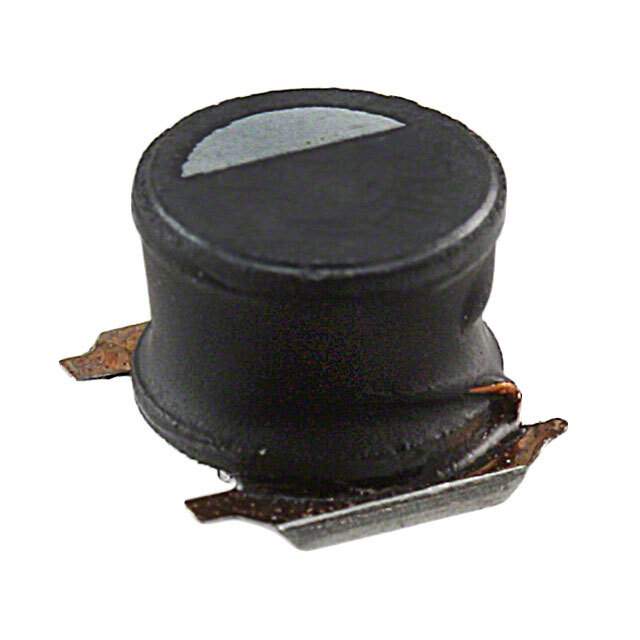

VLC6045T-2R2N Real Image
Same model may have multiple batches, images only for reference.

VLC6045T-2R2N

Part No VLC6045T-2R2N
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 5.5A 17 MOHM SMD
Datasheet
VLC6045T-2R2N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 2.2μH
Tolerance ±30%
Current Rating 5.5A
Current - Saturation 5.5A
DC Resistance (DCR) 17 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 106578-VLC6045T-2R2N
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLC6045T-2R2N CAD Model

Description

The TDK Corporation VLC6045T-2R2N is a wirewound inductor with a current rating of 5.5A and an inductance of 2.2μH.

  • Height: 0.177"
  • Mounting: SMD (SMT) technology
  • Tolerance: ±30%
  • DC Resistance (DCR): 17 mOhm Max
  • Current Saturation: 5.5A
  • Temperature Range: -40°C to 105°C
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
