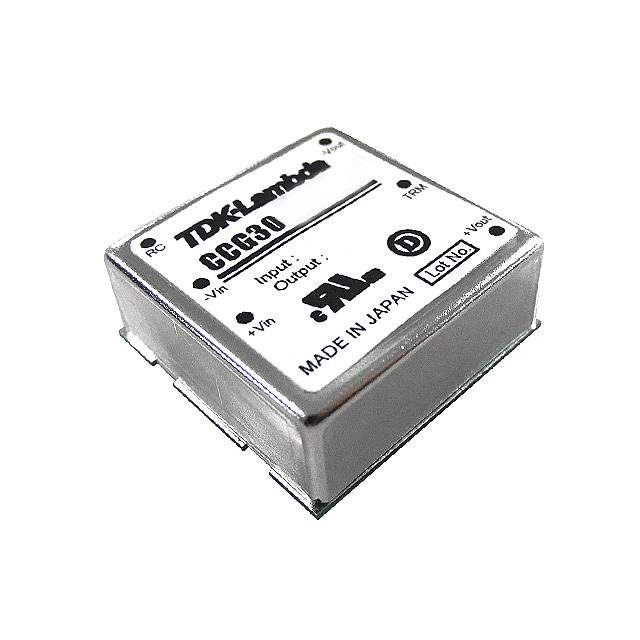

Same model may have multiple batches, images only for reference.

CCG30-48-12S

Name: CCG30-48-12S
Brand: TDK-Lambda Americas Inc.
SKU: 1349117
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CCG30-48-12S
Manufacturer	TDK-Lambda Americas Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 30W / Isolated Module DC DC Converter 1 Output 12V 2.5A 18V - 76V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	TDK-Lambda Americas Inc
Series	CCG30 (30W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	76V
Voltage - Output 1	12V
Current - Output (Max)	2.5A
Power (Watts)	30 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Control Features	Enable, Active Low
Base Product Number	CCG30
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1349117-CCG30-48-12S
Ultra Librarian 3D Model	Ultra Librarian CCG30-48-12S CAD Model

Alternative Products

Description

The CCG30-48-12S is an isolated module DC-DC converter from TDK-Lambda Americas designed for use in power supplies.

Package: Tray
Size: 1.00" L x 1.00" W x 0.39" H
Features: Remote On/Off, OCP, and OVP
Application: ITE (Commercial)
Package Type: 6-DIP Module
Mounting Type: Through Hole
Power Output: 30W
Efficiency: 90%
Voltage Isolation: 1.5 kV
Current Output: 2.5A
Voltage Input: 18V to 76V
Voltage Output: 12V
Temperature Range: -40°C to 85°C
MSL Level: 1, Unlimited
REACH Status: Unaffected
HTSUS Code: 8504.40.9580
