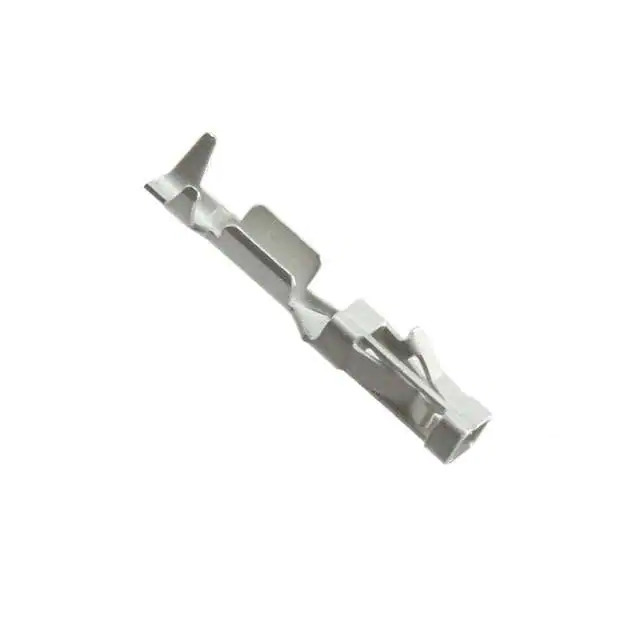

Same model may have multiple batches, images only for reference.
1-104480-7 TE Connectivity
Same model may have multiple batches, images only for reference.

1-104480-7

Part No 1-104480-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SOCKET 22-26AWG CRIMP TIN / Socket Contact Tin 22-26 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPMODU Short Point
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Finish Tin
Contact Finish Thickness 100.0µin (2.54µm)
Base Product Number 104480
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362805-1-104480-7
Ultra Librarian 3D Model Ultra Librarian 1-104480-7 CAD Model

Description

The TE Connectivity AMP Connectors 104480-1362805-1 is a rectangular connector contact manufactured by TE Connectivity AMP Connectors.

  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 22-26 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Packaging: Tape & Reel (TR)
  • Series: AMPMODU Short Point
  • Manufacturer: TE Connectivity AMP Connectors
