Overview of Texas Instruments TPS2553DRVRG4

The TPS2553DRVRG4 is a sophisticated, adjustable current-limited power-distribution switch from Texas Instruments, designed to provide a high level of protection and performance in USB and other hot-swap applications. This device is part of TI's power management integrated circuits, renowned for their reliability and efficiency in controlling power distribution.

Key Features

• Programmable Current Limit: Users can set the current limit threshold via an external resistor, allowing for precise control over the power supplied to downstream devices.
• Auto-Retry or Latch-Off: The TPS2553DRVRG4 offers a choice between auto-retry fault management and latch-off on fault conditions, providing flexibility in response to overcurrent events.
• Fast Overcurrent Response: A quick response to overcurrent conditions helps protect the system and the load from potential damage.
• Reverse Voltage Protection: The device prevents damage to the system if the input voltage is accidentally reversed.
• Under-Voltage Lockout (UVLO): This feature ensures that the device operates at the correct voltage levels, enhancing system stability and safety.

Applications

The TPS2553DRVRG4 is ideal for a wide range of applications that require precise power distribution and management, including:

• USB hubs, peripherals, and chargers
• Hot-swap supplies
• Portable electronics
• Power management for battery-powered devices

Technical Specifications

• Input Voltage Range: 2.5V to 6.5V, accommodating a variety of power sources.

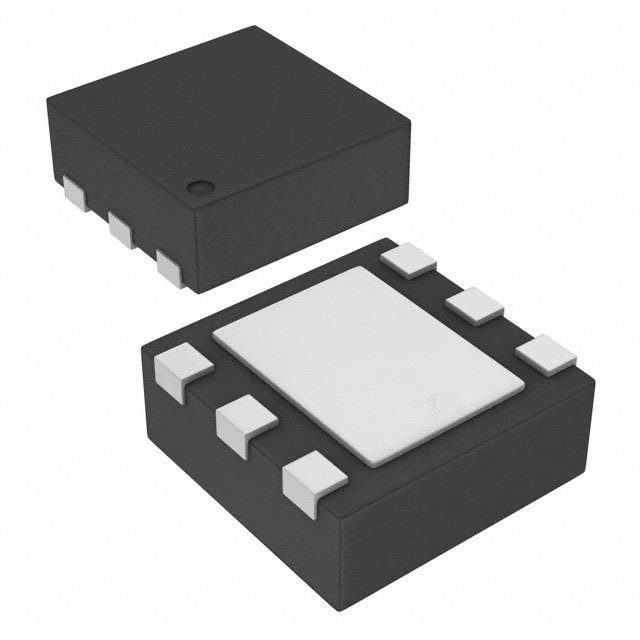

• Package: The device is available in a small, lead-free 6-pin SON package, making it suitable for space-constrained applications.
• Temperature Range: Designed to operate over a –40°C to 85°C range, ensuring reliability across diverse environmental conditions.

The TPS2553DRVRG4 from Texas Instruments represents a state-of-the-art solution for power distribution, with its advanced features ensuring safe and efficient operation in a multitude of electronic devices.
