Products specifications

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Mfr TE Connectivity
Series ERMET
Package Tray
Product Status Obsolete
Connector Type Receptacle, Female Sockets
Connector Style AB 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Connector Usage -
Contact Finish Gold
Contact Finish Thickness -
Voltage Rating -
Temperature Range - Operating -55°C ~ 125°C
Features -
Base Product Number -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 32 pcs
Win Source Part Number 1380497-114809
Ultra Librarian 3D Model Ultra Librarian 114809 CAD Model

Description

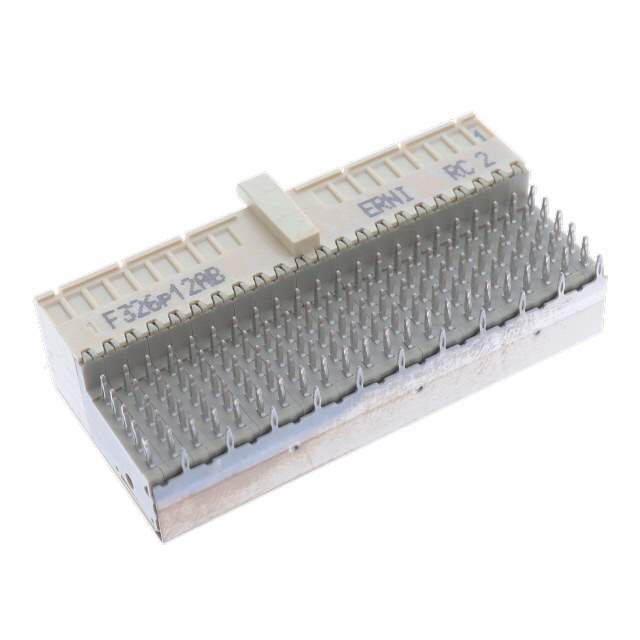

The 1380497-114809 is a hard metric standard backplane connector from TE Connectivity. It belongs to the ERMET series of connectors and has 110 positions with a pitch of 0.079" (2.00mm). The connector is a receptacle with female sockets and is loaded with all positions. It has 5 rows and uses press-fit termination. The contact finish is gold and the connector comes in a tray package with a standard package of 32 pcs. It has a connector style of AB 22 and operates in a temperature range of -55°C to 125°C. The 1380497-114809 is compliant with the ECCN EAR99 and is not affected by REACH regulations. It is suitable for board edge, through-hole, right-angle mounting. The connector is a reliable and durable component that provides secure and efficient connectivity in electronic applications.
