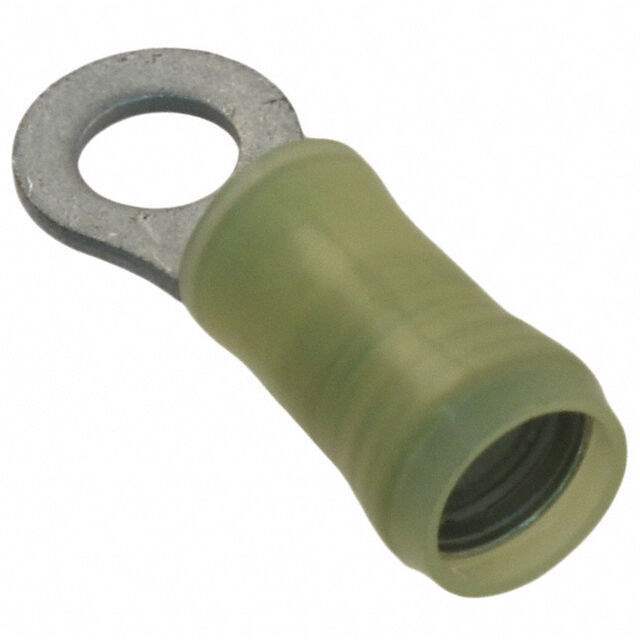

130171 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

130171

Part No 130171
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 10-12AWG M5 CRIMP
Datasheet
130171 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310106-130171
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects > Terminals > Ring Connectors
Packaging Bulk
Part Status Active
Terminal Type Circular
Stud/Tab Size M5 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 1.090" (27.69mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Ultra Librarian 3D Model Ultra Librarian 130171 CAD Model

Description

● Ring Terminal Product Type: Closed Ring Tongue Terminal ● Wire Size: 5180 – 13100 CMA<br />● Stud Size: M5
