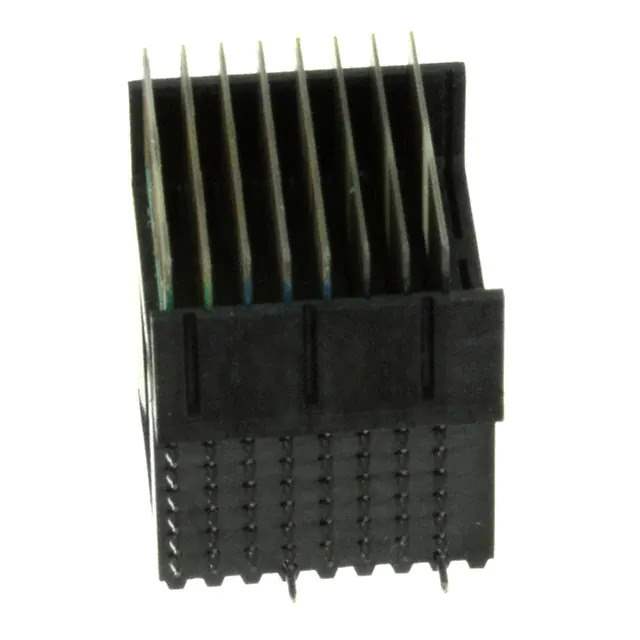

1410189-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr TE Connectivity
Series MultiGig RT2
Package Tube
Product Status Active
Connector Usage Daughtercard
Connector Type Plug, Male Blades
Connector Style VITA 46, Half, Left End
Number of Positions 56
Number of Positions Loaded 53
Pitch 0.071" (1.80mm)
Number of Rows 7
Number of Columns 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 4 Signal Pairs, 16 Single Signal, 6 Power Groups, 11 Ground, 3 Open
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Black
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Voltage Rating 50V
Base Product Number 1410189
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 846755-1410189-3
Ultra Librarian 3D Model Ultra Librarian 1410189-3 CAD Model

Description

The 846755-1410189-3 is a specialized backplane connector in the MultiGig RT2 series.

  • Series: MultiGig RT2
  • Connector Type: Plug
  • Gender: Male blades
  • Pitch: 0.071" (1.80mm)
  • Color: Black
  • Features: Board guide
  • Number of Positions: 56
  • Number of Rows: 7
  • Positions Loaded: 53
  • Termination: Press-fit
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Temperature Range: -55°C to 105°C
  • Packaging: Tube
  • Standard Package Size: 30 pieces
  • Product Status: Active
  • Manufacturer: TE Connectivity
