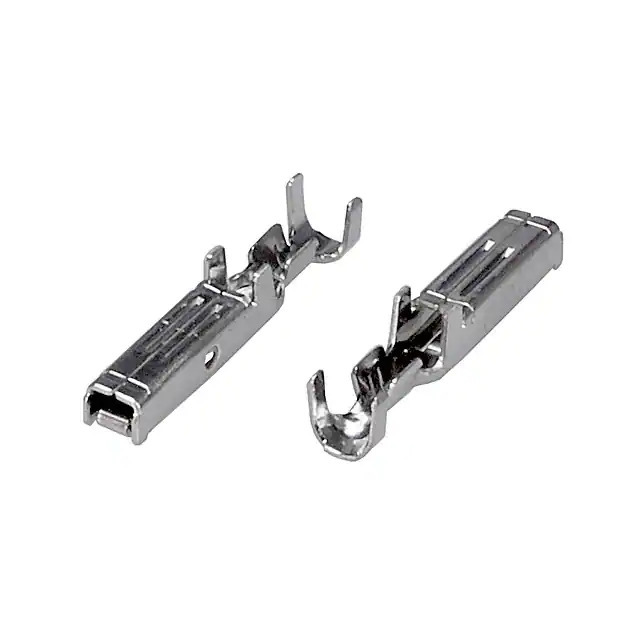

175195-2 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-24 AWG
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Base Product Number 175195
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362878-175195-2
Ultra Librarian 3D Model Ultra Librarian 175195-2 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3 is a rectangular connector contact designed for use in various electronic applications.

  • Type: Connector Contact
  • Series: Dynamic D-3
  • Contact Type: Socket Pin or Socket
  • Termination: Crimp
  • Wire Gauge: 20-24 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin (0.38μm)
  • Packaging: Tape and Reel
  • Product Status: Active
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
