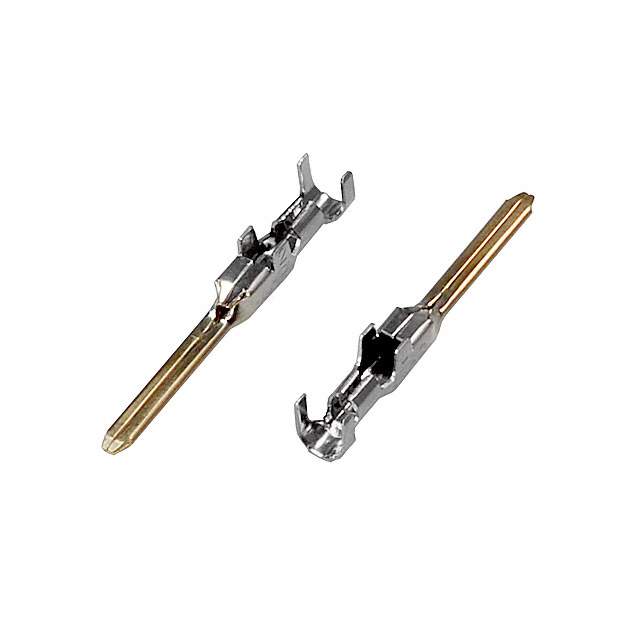

175289-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Dynamic D-3
Packaging Bulk
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 16-20 AWG
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Win Source Part Number 760624-175289-2
Popularity Medium
Supply and Demand Status Limited
Family Name 175289
Introduction Date July 01, 2004
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 175289-2 CAD Model

Description

TE Connectivity AMP Connector's 760624-175289-2 is a dynamic D-3 series connector suitable for use in a variety of applications. However, the supply and demand status for this product is limited.

  • Series: Dynamic D-3
  • Halogen Free: Yes
  • Estimated EOL Date: 2026
  • Win Source Part Number: 760624-175289-2
