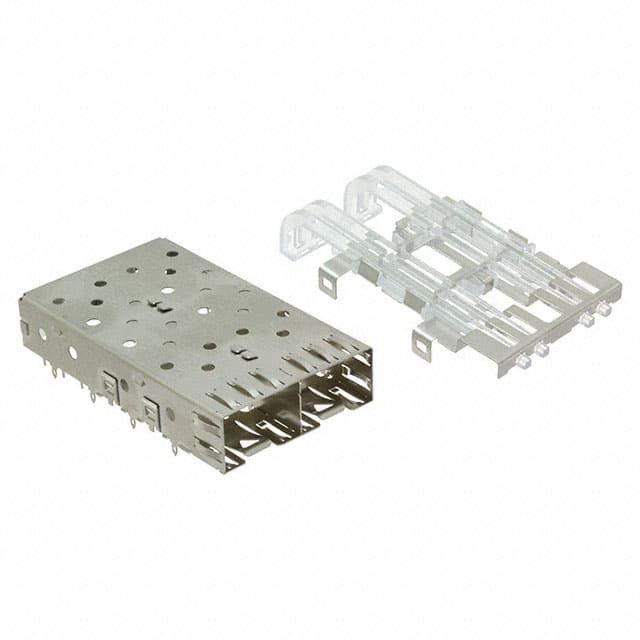

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr TE Connectivity
Package Tray
Product Status Active
Connector Style Cage, Ganged (1 x 2)
Connector Type SFP
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features EMI Shielded, Light Pipe
Base Product Number 1761007
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 905550-1761007-2
Ultra Librarian 3D Model Ultra Librarian 1761007-2 CAD Model

Description

The SFP Pluggable Connector Assembly is a high-quality connector designed for use in networking applications. Bold the product name (e.g., BAV99S,135 → SFP Pluggable Connector Assembly) and manufacturer (e.g., Nexperia USA Inc. → TE Connectivity).

  • Features: EMI shielding and a light pipe
  • Connector Type: SFP
  • Connector Style: Ganged (1 x 2)
  • Termination: Press-fit
  • Package: Tray
