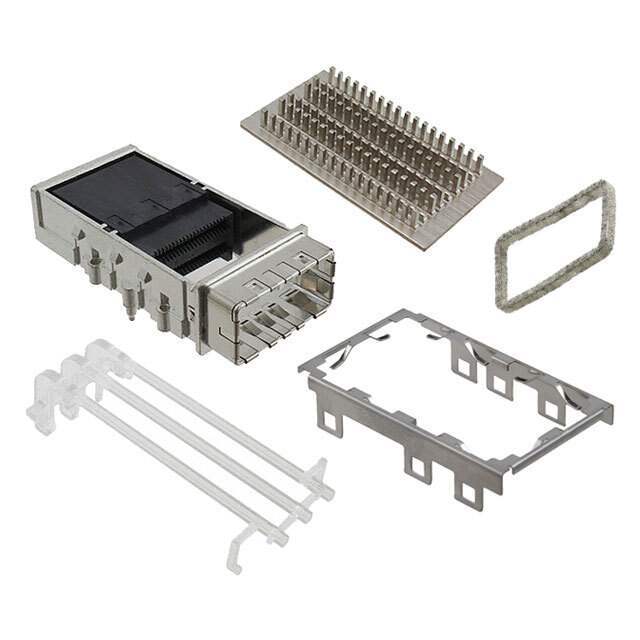

2149159-5 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1206413-2149159-5
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Pluggable Connectors -Pluggable Connector Assemblies
Package Tray
Product Status Obsolete
Connector Style Receptacle with Cage, with Heat Sink
Connector Type CXP
Number of Positions 84
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Features Board Guide, EMI Shielded, Light Pipe
Ultra Librarian 3D Model Ultra Librarian 2149159-5 CAD Model

Description

84 Position CXP Receptacle with Cage, with Heat Sink Connector Press-Fit Through Hole, Right Angle
