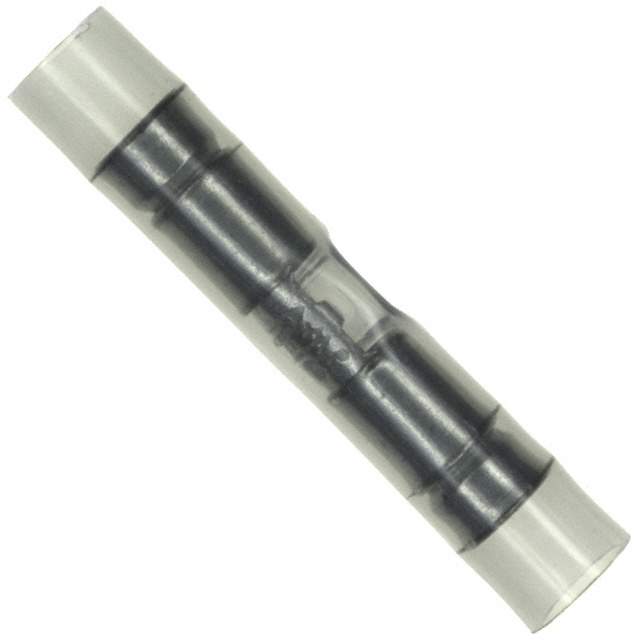

320562 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Wire Splice Connectors
Mfr TE Connectivity
Series PIDG
Package Bulk
Terminal Type Butt Splice, Inline, Individual Openings
Number of Wire Entries 2
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Features Serrated Mating Area
Color Blue
Base Product Number 3205
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 50 pcs
Win Source Part Number 1380752-320562
Ultra Librarian 3D Model Ultra Librarian 320562 CAD Model

Description

The PIDG series wire splice connectors are essential components for electrical connections.

  • Part Number: 1380752-320562
  • Wire Gauge: 14-16 AWG
  • Insulation: Fully Insulated
  • Color: Blue
  • Mating Area: Serrated
  • Termination Method: Crimp
  • Packaging: Bulk
  • Standard Package: 50 Pieces
  • Application: Butt Splice, Inline, Individual Openings
  • ECCN: EAR99
  • REACH Status: Not Affected
  • Manufacturer: TE Connectivity
