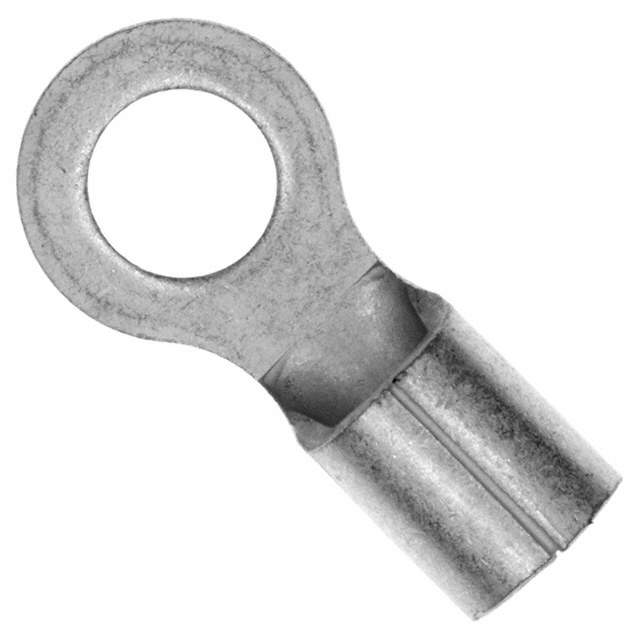

322455 Real Image
Same model may have multiple batches, images only for reference.

322455

Part No 322455
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING CIRC 10-12AWG #10 / Ring Terminal Connector 10 Stud Circular 10-12 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Series Solistrand
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.039" (0.99mm)
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 0.723" (18.36mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 3224
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 906548-322455
Ultra Librarian 3D Model Ultra Librarian 322455 CAD Model

Description

The Solistrand Ring Connector is a terminal designed for crimping onto wires manufactured by TE Connectivity.

  • Shape: Circular
  • Wire Gauge: 10-12 AWG
  • Material: Copper
  • Contact Finish: Tin
  • Insulation: Non-insulated
  • Thickness: 0.039" (0.99mm)
  • Packaging: Bulk packaging with 500 pieces per standard package
  • Mounting: Free hanging (in-line) mounting
  • ECCN: EAR99
  • Product Status: Active
