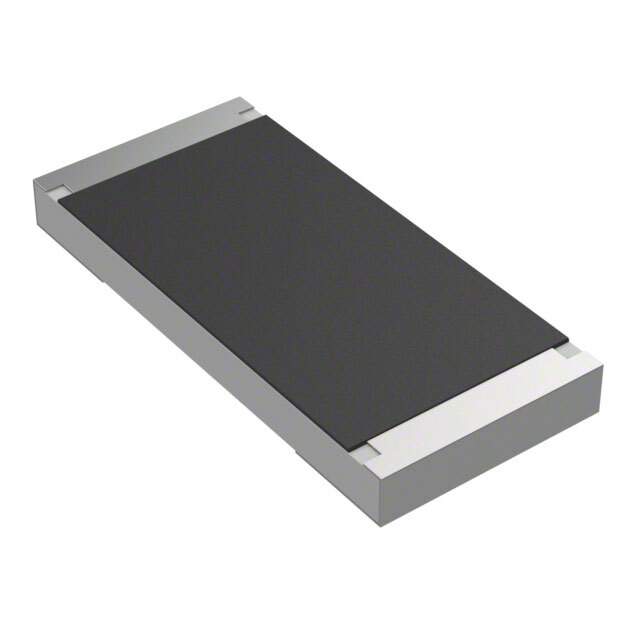

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3550, CGS
Package Tape & Reel
Resistance 330 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Nonstandard
Size / Dimension 0.433" L x 0.197" W (11.00mm x 5.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Number of Terminations 2
Base Product Number 3550
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350596-3550330RJT
Ultra Librarian 3D Model Ultra Librarian 3550330RJT CAD Model

Description

The TE Connectivity Passive Product 3550, CGS series is a chip resistor with a resistance of 330 Ohms and a power rating of 5W.

  • Technology: Thick film
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Size: 0.433" L x 0.197" W
  • Height: 0.047" (1.20mm)
  • Terminations: 2
  • Operating Temperature: -55°C to 155°C
  • Failure Rate: Not specified
  • Suitable for: Applications in various electronic devices that require high power and resistance
