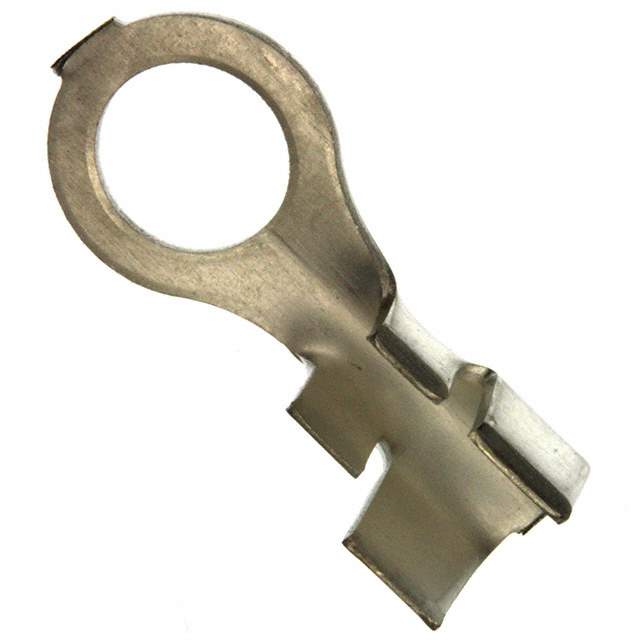

41333 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.296" (7.52mm)
Length - Overall 0.640" (16.26mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.170" (3.05mm ~ 4.32mm)
Base Product Number 4133
Standard Package 12,500 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1333554-41333
Ultra Librarian 3D Model Ultra Librarian 41333 CAD Model

Description

The 1333554-41333 is a ring connector terminal from TE Connectivity.

  • Wire Gauge: 14-18 AWG
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Thickness: 0.020" (0.51mm)
  • Width: 0.296" (7.52mm)
  • Overall Length: 0.640" (16.26mm)
  • Insulation Diameter: 0.120" to 0.170" (3.05mm to 4.32mm)
  • Stud/Tab Size: 10 stud
  • Mounting Type: Free Hanging (In-Line)
  • Package: Tape and Reel or Cut Tape
  • Standard Package: 12,500 pieces
  • REACH Status: Vendor Undefined
  • Product Status: Active
