Products specifications

Category Connectors, Interconnects>Terminals>Ring Connectors
Mfr TE Connectivity
Series PIDG
Package Bulk
Terminal Type Circular
Stud/Tab Size 4 Stud
Thickness 0.027" (0.69mm)
Width - Outer Edges 0.203" (5.16mm)
Length - Overall 0.736" (18.69mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 24-26 AWG
Insulation Insulated
Features Serrated Termination
Color Yellow
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.050" ~ 0.105" (1.27mm ~ 2.67mm)
Material - Insulation Polyamide (PA), Nylon
Base Product Number 5218
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 1,000 pcs
Win Source Part Number 1380905-52189
Ultra Librarian 3D Model Ultra Librarian 52189 CAD Model

Description

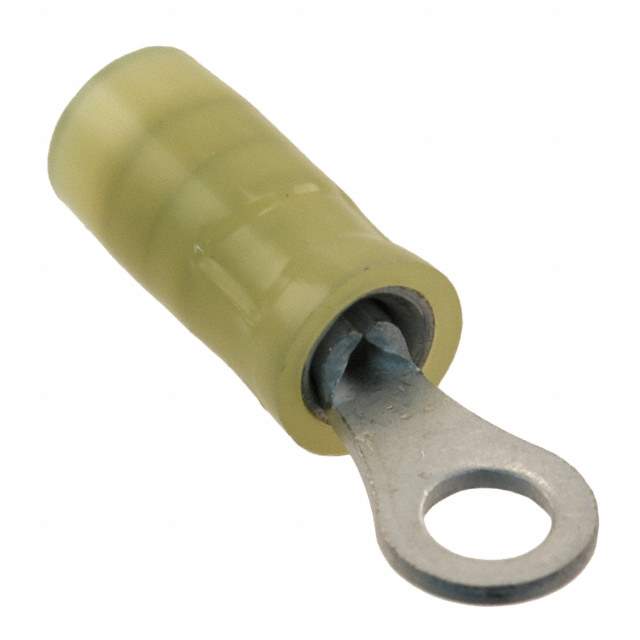

The PIDG ring connector is a high-quality terminal designed for secure and reliable connections. It features serrated termination for enhanced grip and crimp termination for easy installation. The contact finish is tin, ensuring low contact resistance and excellent conductivity. The connector is insulated with polyamide (PA) and nylon materials, providing insulation and protection against electrical and environmental factors. It can accommodate wire gauges of 24-26 AWG and has a stud/tab size of 4 studs. The PIDG ring connector is mounted in a free-hanging (in-line) configuration and comes in a bulk package of 1,000 pcs. It is moisture sensitive level 1 (unlimited) and complies with ECCN EAR99 regulations. Manufactured by TE Connectivity, a trusted brand in the industry, the PIDG ring connector is widely used in various applications that require secure and reliable electrical connections.

  • Termination: Serrated, Crimp
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Wire Gauge: 24-26 AWG
  • Stud/Tab Size: 4 Studs
  • Mounting Type: Free Hanging (In-Line)
  • Package Type: Bulk
  • Standard Package: 1,000 pcs
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • ECCN: EAR99
  • Manufacturer: TE Connectivity
