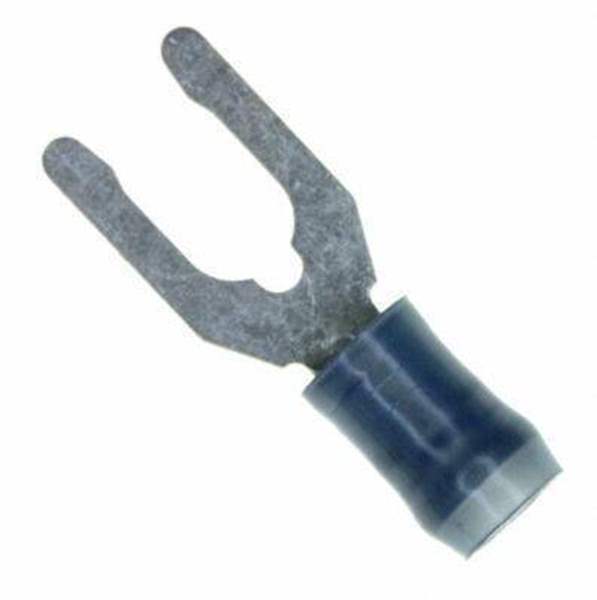

52422-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

52422-1

Part No 52422-1
Manufacturer TE Connectivity
Catalog Terminals
Description TE Connectivity AMP Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Terminals Spade Connectors
Package Bulk
Product Status Active
Terminal Type Spring, Snap
Stud/Tab Size 10 Stud
Width - Outer Edges 0.343" (8.71mm)
Length - Overall 1.005" (25.53mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Win Source Part Number WS1209159-52422-1
Ultra Librarian 3D Model Ultra Librarian 52422-1 CAD Model

Description

Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG
