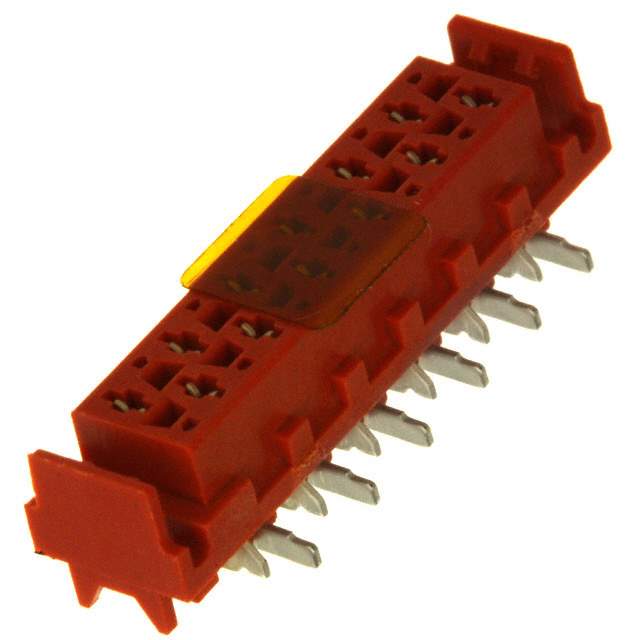

8-338069-2 Real Image
Same model may have multiple batches, images only for reference.

8-338069-2

Part No 8-338069-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 12POS 0.1 TIN SMD / 12 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity AMP Connectors
Series Micro-MaTch
Package Tape & Reel
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.209" (5.30mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polyamide (PA46) , Nylon 4/6, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 338069
Standard Package 900
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338630-8-338069-2
Ultra Librarian 3D Model Ultra Librarian 8-338069-2 CAD Model

Description

The TE Connectivity AMP Connectors Micro-MaTch Connector is a 12 position receptacle connector with a pitch of 0.100" (2.54mm).

  • Positions: 12
  • Pitch: 0.100" (2.54mm)
  • Application: Board to Board, Cable
  • Voltage Rating: 100VDC
  • Insulation Material: Polyamide (PA46) , Nylon 4/6, Glass Filled
  • Insulation Color: Red
  • RoHS Compliant: Yes
  • Popularity: Low
