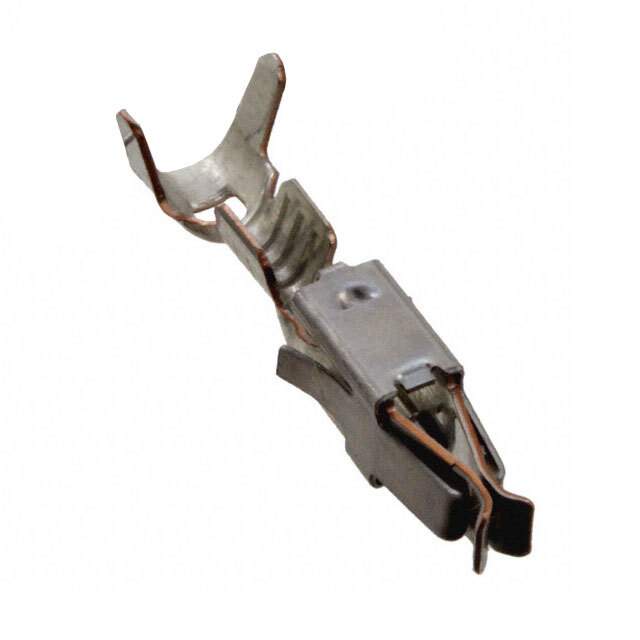

927770-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Contacts
Mfr TE Connectivity AMP Connectors
Series Junior Power Timer
Package Tape & Reel (TR),Cut Tape (CT)
Type Power
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 17-20 AWG
Contact Finish Tin
Contact Finish Thickness 39.4µin (1.00µm)
Base Product Number 927770
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names -927770-1-LSI,927770-1-ND,-927770-1-CSI,9277701,A107051CT,A107051TR
Standard Package 11,250
Win Source Part Number 1230801-927770-1
Ultra Librarian 3D Model Ultra Librarian 927770-1 CAD Model

Description

The Junior Power Timer series socket contact is suitable for use with 17-20 AWG wires and has a contact finish of tin with a thickness of 39.4µin (1.00µm).

  • Wire Gauge: 17-20 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: 39.4µin (1.00µm)
  • Package: Tape and Reel
  • Termination: Crimp
  • Pin/Socket Type: Socket
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.90.4000
  • Standard Package: 11,250 pieces
