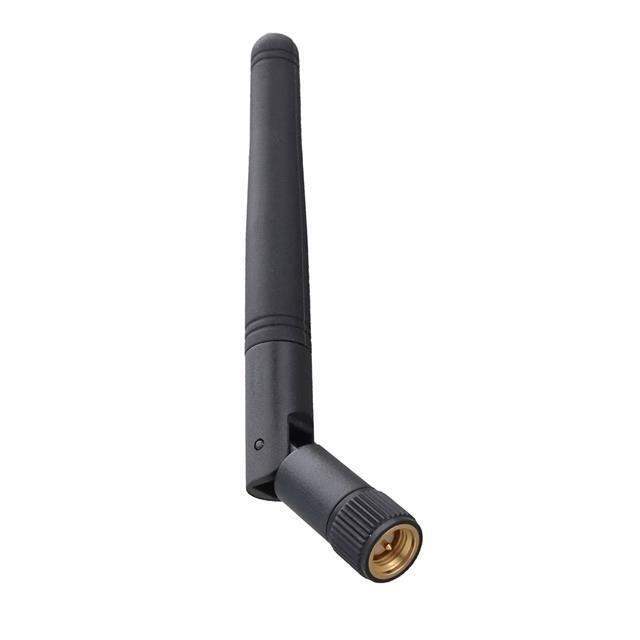

MAF94271 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Bulk
Product Status Active
RF Family/Standard WiFi
Frequency Group UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
Antenna Type Whip, Tilt
Number of Bands 2
VSWR 2
Gain 2.1dBi, 3.4dBi
Termination SMA Male
Grade -
Mounting Type Connector Mount
Height (Max) 3.776" (95.90mm)
Applications Wi-Fi, WLAN
Ultra Librarian 3D Model Ultra Librarian MAF94271 CAD Model

Description

RF ANTENNA Wi-Fi, WLAN Whip, Tilt SMA Male Connector Mount
