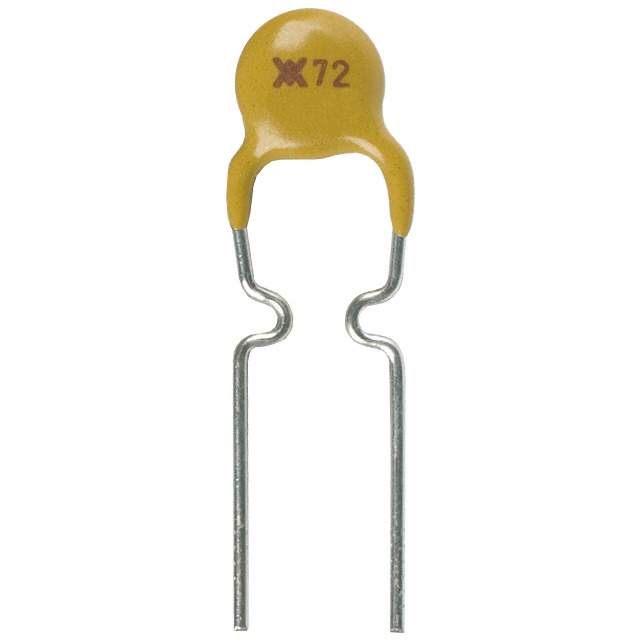

RXEF025 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 500
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch RXEF
Packaging Bulk
Voltage - Max 72V
Current - Max 40A
Current - Hold (Ih) (Max) 250mA
Current - Trip (It) 500mA
R Min/Max 1.250 ~ 3.000 Ohm
Time to Trip 2.5s
Package Radial Disc
Catalog PolySwitch Radial Leaded
Win Source Part Number 084223-RXEF025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Medical, Test & Measurement, Audio, Lighting, Communications & Networking, Security, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian RXEF025 CAD Model

Description

The TE Connectivity PolySwitch RXEF is a PTC resettable fuse designed for circuit protection.

  • Voltage-Max: 72V
  • Current-Max: 40A
  • Package: radial disc
  • Current Hold: 250mA
  • Current Trip: 500mA
  • R Min/Max: 1.250 ~ 3.000 Ohm
  • Time to Trip: 2.5s
  • Status: common-used
  • Popularity: highly popular
  • Supply and Demand Status: sufficient
