Same model may have multiple batches, images only for reference.

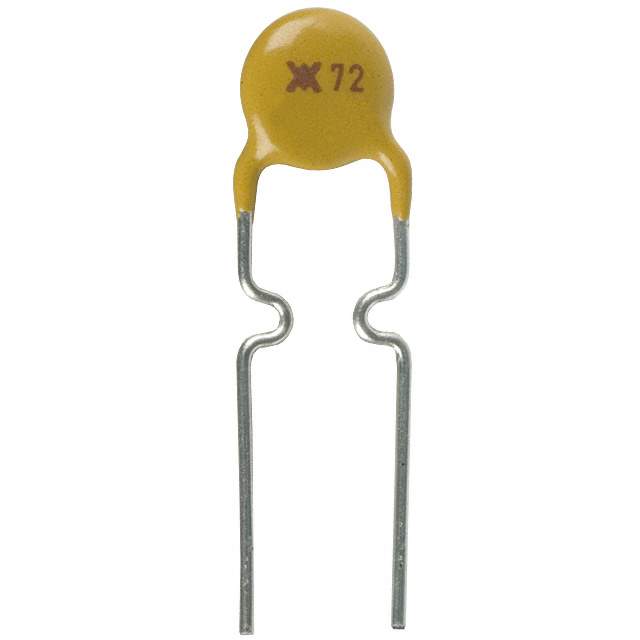

RXEF030 Real Image
Same model may have multiple batches, images only for reference.

RXEF030

Part No RXEF030
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.3A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 500
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch RXEF
Packaging Bulk
Voltage - Max 72V
Current - Max 40A
Current - Hold (Ih) (Max) 300mA
Current - Trip (It) 600mA
R Min/Max 0.880 ~ 0.0021 Ohm
Time to Trip 3s
Package Radial
Catalog PolySwitch Radial Leaded
Win Source Part Number 084222-RXEF030
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Safety, Industrial, Portable Devices
Ultra Librarian 3D Model Ultra Librarian RXEF030 CAD Model

Description

The TE Connectivity PolySwitch RXEF PTC Resettable Fuse is a circuit protection device that is commonly used in safety, industrial, and portable devices.

  • Voltage-Max: 72V
  • Current-Max: 40A
  • Current Trip: 600mA
  • Current Hold: 300mA
  • R Min/Max: 0.880 ~ 0.0021 Ohm
  • Time to Trip: 3s
  • Packaging: bulk
  • Package: radial package
  • Standard Package: 500
  • Popularity: high in the market
  • Supply and Demand Status: sufficient
