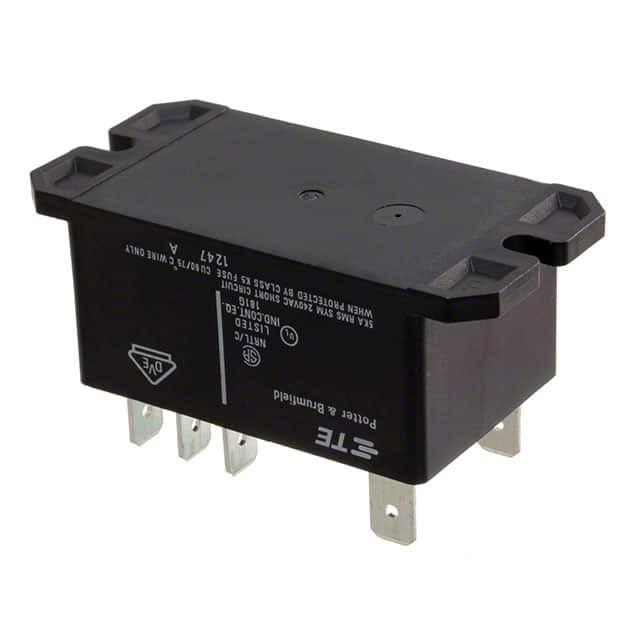

T92P11A22-120 TE Connectivity
Same model may have multiple batches, images only for reference.

T92P11A22-120

Part No T92P11A22-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 30A 120V / General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series T92
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Nom
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 96 VAC
Must Release Voltage 12 VAC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 950 Ohms
Base Product Number T92P1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Other Names 4-1393211-0,PB492-NDR,Q7188670,-T92P11A22-120-SI,PB492,T92P11A22120
Standard Package 30
Win Source Part Number 1042037-T92P11A22-120
Ultra Librarian 3D Model Ultra Librarian T92P11A22-120 CAD Model

Description

The T92P11A22-120 is a DPDT power relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: DPDT
  • Coil Resistance: 950 ohms
  • Coil Voltage: 120VAC
  • Contact Rating: 30A
  • Switching Voltage: 277VAC
  • Operating Temperature: -55°C to 65°C
  • Mounting Type: Chassis Mount
  • Coil Insulation: Class F
  • Must Operate Voltage: 96VAC
