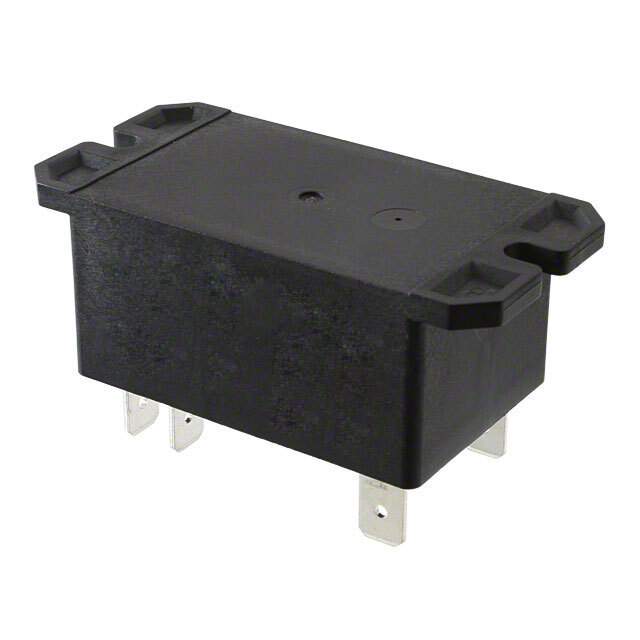

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Chassis Mount
Coil Voltage 240VAC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Nom
Coil Current 16.7mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class F
Must Operate Voltage 192 VAC
Must Release Voltage 24 VAC
Operate Time 15ms
Release Time 15ms
Temperature Range - Operating -55°C ~ 65°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 3.8 kOhms
Manufacturer Pack Quantity 30
MSL Level Not Applicable
Win Source Part Number 1263533-T92P7A22-240
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T92P7A22-240 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a general-purpose relay with a DPST-NO (2 Form A) contact form.

  • Contact Form: DPST-NO (2 Form A)
  • Termination Style: quick connect 0.250” (6.3mm)
  • Mounting Style: chassis mount
  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Resistance: 3.8 kOhms
  • Coil Voltage: 240VAC
  • Coil Current: 16.7mA
  • Contact Rating: 30A
  • Switching Voltage: 277VAC - Nom
  • Operate Time: 15ms
  • Release Time: 15ms
  • Temperature Range: -55°C to 65°C
  • Packaging: bulk
  • Pack Quantity: 30

You May Also Be Interested in
