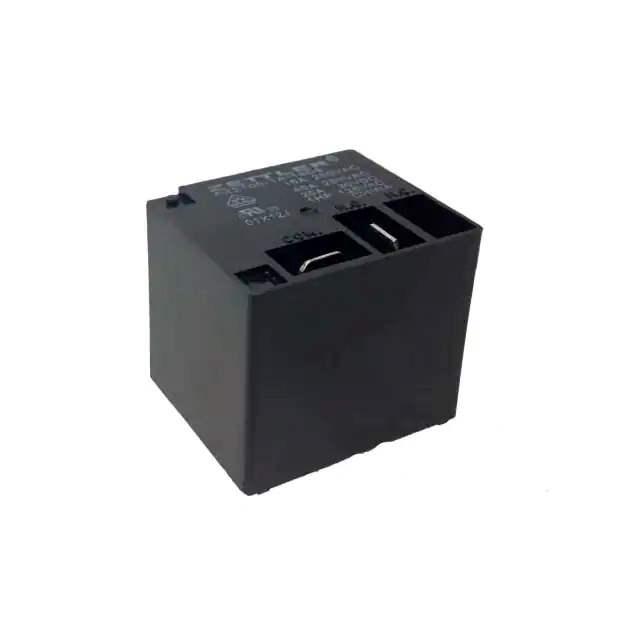

AZ2100-1A-12DEF Real Image
Same model may have multiple batches, images only for reference.

AZ2100-1A-12DEF

Part No AZ2100-1A-12DEF
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 40A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
AZ2100-1A-12DEF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler, Inc.
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 40 A
Switching Voltage 277VAC, 30VDC - Max
Coil Current 77.4 mA
Coil Type Non Latching
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 155 Ohms
Base Product Number AZ2100
Standard Package 240 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 912383-AZ2100-1A-12DEF
Ultra Librarian 3D Model Ultra Librarian AZ2100-1A-12DEF CAD Model

Description

The AZ2100 Power Relay is a versatile component used in various applications.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Coil Voltage: 12VDC
  • Contact Rating: 40 A
  • Operating Temperature: -55°C ~ 85°C
  • Seal: Fully sealed
  • Manufacturer: American Zettler, Inc.
  • Mounting: Through-hole and quick connect mounting
