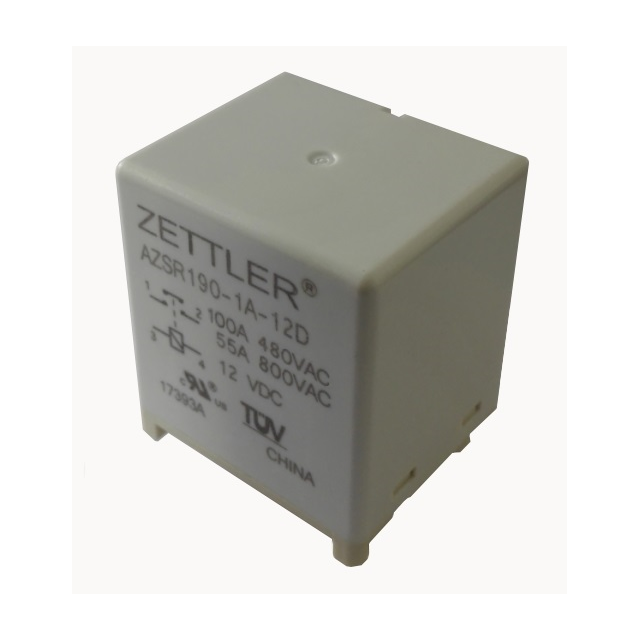

AZSR190T-1AE-12D Real Image
Same model may have multiple batches, images only for reference.

AZSR190T-1AE-12D

Part No AZSR190T-1AE-12D
Manufacturer American Zettler, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 100A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
AZSR190T-1AE-12D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr American Zettler
Package Tube
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 100 A
Switching Voltage 800VAC - Max
Coil Current 171.4 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 40 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 70 Ohms
Base Product Number AZSR190
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1339765-AZSR190T-1AE-12D
Ultra Librarian 3D Model Ultra Librarian AZSR190T-1AE-12D CAD Model

Description

The AZSR190T-1AE-12D is a power relay from American Zettler with a contact rating of 100 A and a switching voltage of 800 VAC max.

  • Contact Rating: 100 A
  • Switching Voltage: 800 VAC max
  • Coil Voltage: 12 VDC
  • Coil Resistance: 70 Ohms
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Operate Time: 40 ms
  • Release Time: 10 ms
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • Standard Package: 10
  • Series: AZSR190
  • Coil Type: Non-Latching
  • Coil Insulation: Class F
