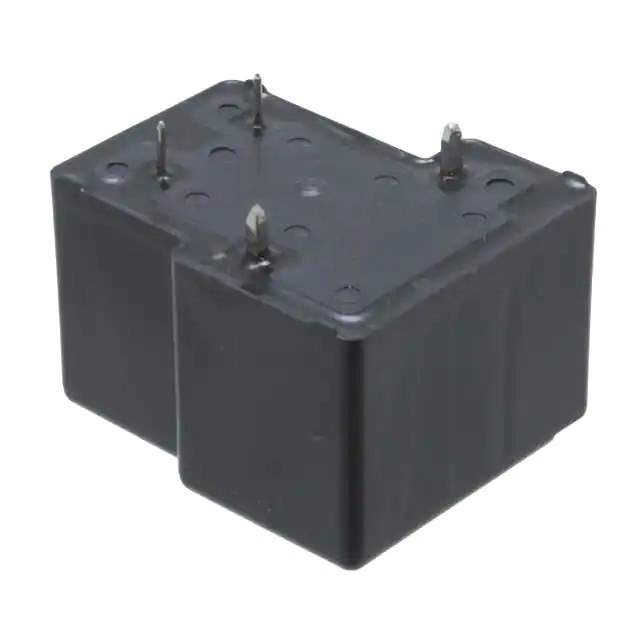

JTN1AS-PA-F-DC12V Real Image
Same model may have multiple batches, images only for reference.

JTN1AS-PA-F-DC12V

Part No JTN1AS-PA-F-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JT-N
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Coil Current 66.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 180 Ohms
Base Product Number JTN1AS
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 843908-JTN1AS-PA-F-DC12V
Ultra Librarian 3D Model Ultra Librarian JTN1AS-PA-F-DC12V CAD Model

Description

The JTN1AS-PA-F-DC12V is a general-purpose power relay with a contact rating of 30 A.

  • Contact Rating: 30 A
  • Coil Voltage: 12VDC
  • Coil Resistance: 180 Ohms
  • Contact Form: Single-Pole, Single-Throw Normally Open
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Switching Voltage: Up to 277VAC
  • Mounting Type: Through-Hole
  • Temperature Range: -55°C to 85°C
  • Product Status: Obsolete
  • Manufacturer: Panasonic
  • Package: Bulk
  • Standard Quantity: 50 pieces
