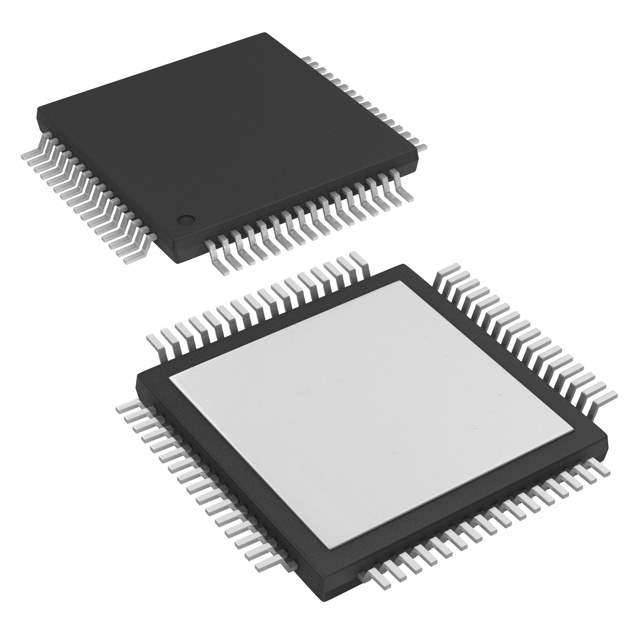

ADS1274IPAPR

Name: ADS1274IPAPR
Brand: Texas Instruments
SKU: 558960
Availability: InStock
Rating: 5 (703 reviews)

Part No	ADS1274IPAPR
Manufacturer	Texas Instruments
Catalog	Data Acquisition - Analog to Digital Converters (ADC)
Description	Quad/Octal, Simultaneous Sampling, 24-Bit Analog-to-Digital Converters
Datasheet	ADS1274IPAPR Datasheet
Sample
ECAD Module

	New List Existing List This product has been added to your List. List Name:

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $45.5194

Quantity

Unit Price

Ext. Price

$58.2090

$58.209

$47.7620

$143.286

$46.2690

$185.076

$44.7770

$223.885

$43.2840

$259.704

$38.8060

$310.448

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 7,060 pieces

Order Increment : 1 pcs

Qty:

*Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

Categories	Integrated Circuits (ICs)
Manufacturer	Texas Instruments
Packaging	Reel - TR
Resolution	24
Sampling Rate	144k
Number of Inputs	4
Input Type	Differential
Data Interface	SPI
Configuration	ADC
Number of Converters	1
Architecture	Sigma-Delta
Reference Type	External
Operating Supply Voltage	5V
Voltage - Supply, Digital	1.65 V ~ 1.95 V
Operating Temperature Range	-40°C ~ 125°C
Package	64-TQFP Exposed Pad
Manufacturer Package	64-HTQFP (10x10)
Win Source Part Number	1141648-ADS1274IPAPR
Manufacturer Homepage	www.ti.com
Family Name	ADS1274
Introduction Date	October 01, 2006
ECCN	EAR99
Country of Origin	Taiwan
Halogen Free	Compliant
Estimated EOL Date	2028
Is this a common-used part?	Yes
Popularity	High
Fake Threat In the Open Market	37 pct.
Supply and Demand Status	Limited
Application Field	Used in Industrial, Sensing & Instrumentation, Audio
Alternative Parts (Cross-Reference)	AD7175-2BRUZ; AD7176-2BRUZ; AD7176-2BRUZ-RL;

Description

Texas Instruments ADS1274IPAPR

The ADS1274IPAPR from Texas Instruments is a high-performance, quad-channel, 24-bit analog-to-digital converter (ADC) designed for applications that demand excellent dynamic performance and high-precision measurements. This ADC is part of Texas Instruments' ADS127x family and is ideal for industrial data acquisition, medical imaging, audio testing, and instrumentation that require high-resolution signal processing.

Key Features

High Resolution: With its 24-bit resolution, the ADS1274IPAPR offers an exceptional level of granularity, making it suitable for capturing very small signal variations in detail.
Quad-Channel Input: The device features four simultaneously-sampled differential inputs, providing flexibility for multi-channel applications without the need for external multiplexing.
High Data Rates: It supports data rates up to 105k samples per second per channel, allowing for real-time data acquisition and processing in demanding scenarios.
Excellent Dynamic Performance: The ADC boasts a high signal-to-noise ratio (SNR) and low total harmonic distortion (THD), ensuring accurate and clean signal conversion.
Flexible Power Supply: The ADS1274IPAPR operates on a 5V analog supply and a 1.8V to 5V digital supply, accommodating a variety of system power schemes.
Programmable Gain: The built-in programmable gain amplifier (PGA) allows for gain settings from 1 to 12, enabling the ADC to adapt to different signal levels.
Temperature Range: This device is operational over an extended industrial temperature range, making it reliable in various environmental conditions.
Package: It comes in a 64-TQFP (10x10) package, which is suitable for space-constrained applications.

Applications

The ADS1274IPAPR is versatile and can be used in a wide range of applications. Its precision and speed make it an excellent choice for:

Industrial control systems
Medical imaging equipment
Scientific instrumentation
Seismic data acquisition systems
High-fidelity audio equipment
Test and measurement systems

Overall, the ADS1274IPAPR ADC by Texas Instruments is a robust and reliable component that meets the needs of professionals looking for precise and high-speed data conversion in their electronic designs.
