Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Series 4000B
Packaging Tube
Part Status Obsolete(EOL)
Logic Type D-Type Transparent Latch
Output Type Standard
Operating Supply Voltage 3 V ~ 18 V
Independent Circuits 2
Delay Time - Propagation 50ns
Current - Output High, Low 6.8mA, 6.8mA
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package 24-DIP (0.600", 15.24mm)
Manufacturer Package 24-PDIP
RoHS State Request Verification
Win Source Part Number 1159815-CD4508BE
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name CD4508
Introduction Date November 01, 2003
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CD4508BE CAD Model

Description

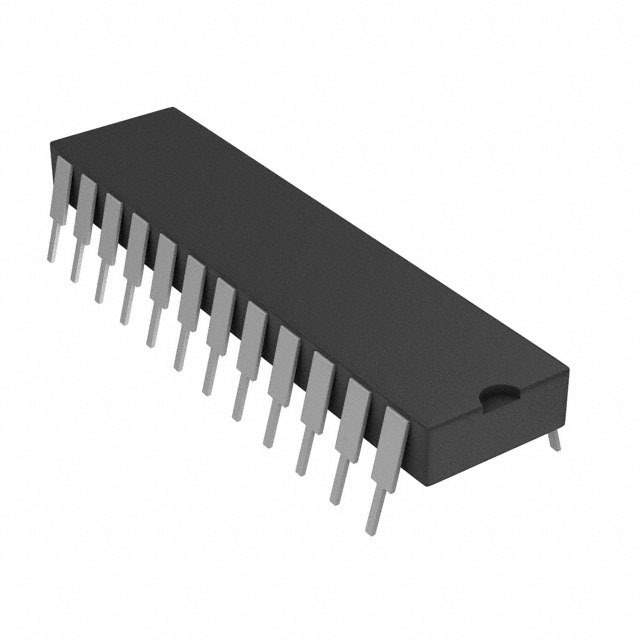

The CD4508BE is a high-quality integrated circuit designed and manufactured by Texas Instruments, a leader in semiconductor innovation. This dual 4-bit latch is an essential component for various digital applications, providing reliable storage and data retention capabilities.

CD4508BE Dual 4-Bit Latch

Key Features

  • Logic Type: Dual 4-Bit Latch
  • Package / Case: PDIP-24
  • Operating Temperature: -55°C to +125°C
  • Logic Family: CD4000
  • Output Type: Differential
  • Supply Voltage Range: 3V to 18V
  • Propagation Delay Time: 50ns at 10V

Product Description

The CD4508BE is a versatile dual 4-bit latch that is part of the CD4000 series of integrated circuits. Each latch has independent clear and preset inputs as well as a common clock input. The device is designed to hold onto its output state with a high degree of stability, making it ideal for temporary data storage in digital systems.

Its wide operating voltage range from 3V to 18V allows it to be used in various environments and applications. The device comes in a 24-pin PDIP (Plastic Dual In-line Package), which makes it easy to handle and integrate into PCB designs.

With its fast propagation delay time of 50ns at 10V, the CD4508BE ensures quick data processing, which is critical for high-speed digital circuits. The differential output type provides a means to minimize errors and signal degradation, ensuring that the integrity of the data is maintained during transfer and storage.

Whether you are designing a computer system, a memory storage solution, or any other digital logic application, the CD4508BE from Texas Instruments offers the performance and reliability you need. Its robust design and wide temperature operating range make it suitable for both commercial and industrial applications.

For detailed specifications, application notes, and more, please refer to the official Texas Instruments datasheet for the CD4508BE.
