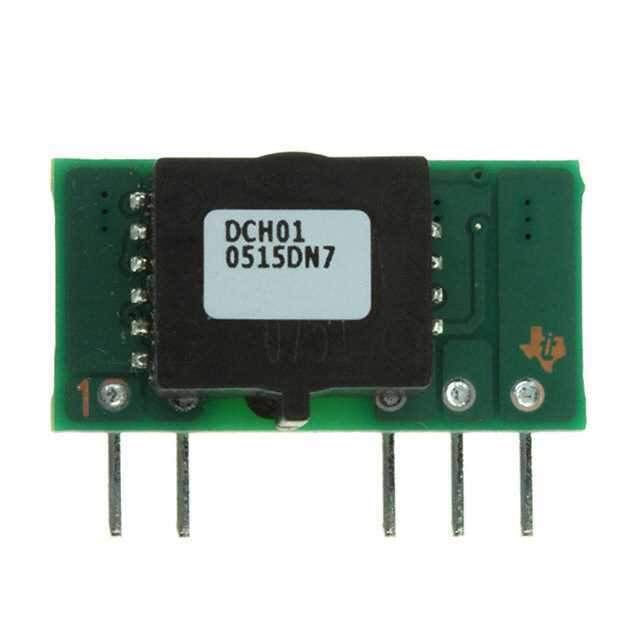

DCH010515DN7

Part No DCH010515DN7
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MINIATURE, 1W, 3kV ISOLATED UNREGULATED DC/DC CONVERTERS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series DCH01
Packaging Tray
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 33mA, 33mA
Power (Watts) 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 76%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Size 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm)
Win Source Part Number 1166864-DCH010515DN7
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name DCH010515DN7
Introduction Date January 06, 2006
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2028
Win Source Part Number NMA0515S;   AM1DS-0515DH52Z;  AM1DS-0515DZ;

Description

The DCH010515DN7 is a high-performance, isolated, regulated DC-DC converter manufactured by Texas Instruments. It is designed to provide reliable power conversion and isolation in a compact surface-mount package. The product is part of TI's extensive range of power management integrated circuits, engineered to meet the stringent requirements of industrial, telecommunications, and medical applications.

Key Features

  • Input Voltage Range: The DCH010515DN7 operates with an input voltage range of 4.5V to 5.5V, making it suitable for a variety of 5V supply applications.
  • Output Voltage and Power: This converter provides a dual output of ±15V, with an output power rating of up to 1W. It is an excellent choice for applications requiring a small power source with a balanced split supply.
  • Efficiency: With an efficiency rate of up to 85%, it ensures minimal power loss during conversion, leading to energy savings and reduced heat generation.
  • Isolation: The device offers 1000VDC of isolation, providing safety and protection against high voltage transients and enhancing system reliability.
  • Package: The DCH010515DN7 comes in a DIP Module package, which is easy to integrate into PCB designs and is suitable for high-density mounting.
  • Temperature Range: It is operational over an industrial temperature range of -40°C to 85°C, ensuring performance in harsh environments.

Applications

The DCH010515DN7 is versatile and can be used in a range of applications, including:

  • Isolated power supplies for sensors and transducers
  • Industrial control systems
  • Telecommunications equipment
  • Medical equipment with stringent isolation requirements
  • Modular power supplies in mixed voltage systems

Quality and Reliability

As with all Texas Instruments products, the DCH010515DN7 is manufactured to the highest quality standards, with rigorous testing to ensure performance and reliability. TI's commitment to quality makes this product a dependable choice for designers looking to incorporate a safe, efficient, and durable DC-DC converter into their applications.
