Overview of MSP430F5635IZQWT Microcontroller

The MSP430F5635IZQWT is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for industrial and consumer applications requiring low-power consumption and high integration. With a 16-bit RISC architecture, this MCU provides a balanced combination of efficient processing capabilities and enhanced power management options.

Key Features

• Low Power Consumption: As part of the MSP430 family, this MCU is optimized for low power operation, featuring a range of low-power modes that significantly reduce energy usage during idle periods.
• CPU and Memory: It boasts a 16-bit RISC CPU, 32KB of flash memory, and 4KB of RAM, providing ample resources for complex applications and data processing tasks.
• Digital and Analog Peripherals: The MSP430F5635IZQWT is equipped with various integrated peripherals, including digital I/O ports, timers, a 12-bit analog-to-digital converter (ADC), and a 12-bit digital-to-analog converter (DAC), enhancing its versatility in handling diverse tasks.
• Clock System: The MCU contains a flexible clock system with a frequency-locked loop (FLL) controlled by external or internal reference sources, ensuring accurate timing for operations and communication protocols.
• Communication Interfaces: Multiple communication interfaces are built-in, such as I2C, SPI, and UART, allowing for easy integration with other components and systems.

Applications

The MSP430F5635IZQWT is ideal for a wide array of applications, including but not limited to:

• Smart meters and energy monitoring systems
• Portable medical devices
• Home automation and security systems
• Industrial control systems

Package and Quality

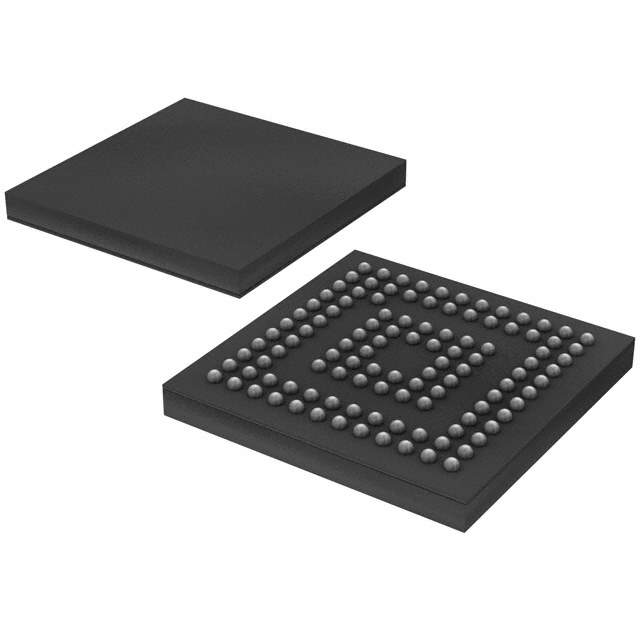

The MSP430F5635IZQWT comes in a compact 113-pin BGA (Ball Grid Array) package, allowing for a small footprint on PCBs. It is manufactured under Texas Instruments' stringent quality control processes, ensuring reliability and performance consistency for critical applications.

Support and Resources

Developers can take advantage of Texas Instruments' comprehensive support ecosystem, which includes development tools, software libraries, and community forums. Detailed documentation, such as datasheets and user guides, is readily available to facilitate the design and implementation process.
