Product Overview: OMAPL137CZKBT3

The OMAPL137CZKBT3 is a highly integrated microprocessor from Texas Instruments, designed to cater to a wide range of applications, with a particular focus on industrial and medical applications. This powerful SoC (System on Chip) combines the benefits of an ARM9 core with a DSP (Digital Signal Processor), enabling it to handle complex computations and control tasks efficiently.

Key Features

• ARM9 Core: The OMAPL137 features an ARM926EJ-S core that operates at speeds up to 300 MHz, providing a solid balance between power consumption and performance.
• DSP Core: The TMS320C6747 DSP core runs at 300 MHz and is optimized for high-performance signal processing tasks, making it an ideal choice for applications that require intensive processing, such as audio and image manipulation.
• Memory: The device supports a range of external memory interfaces including DDR2, NAND, and NOR, allowing for flexible memory management and storage options.
• Peripherals: A rich set of peripherals is integrated into the OMAPL137CZKBT3, including USB 2.0, UART, SPI, I2C, and GPIOs. This ensures easy connectivity and interfacing with a wide array of external devices.
• Audio Support: With an integrated audio serial port (McASP), the OMAPL137CZKBT3 supports multiple audio codecs, which is essential for multimedia applications.
• Operating Temperature: The device is designed to operate within the industrial temperature range, making it reliable for use in harsh environments.

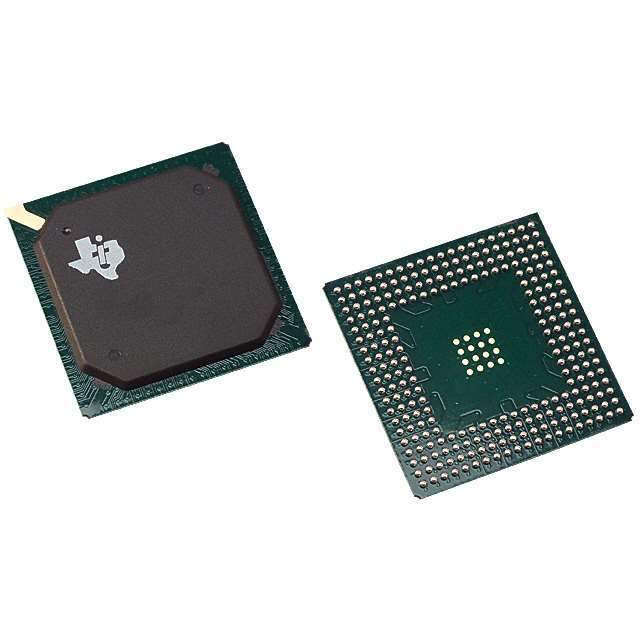

• Package: The OMAPL137CZKBT3 comes in a 256-ball BGA (Ball Grid Array) package, which allows for a compact design footprint.

Applications

The OMAPL137CZKBT3 is versatile and can be used in a variety of applications, including but not limited to:

• Industrial control systems
• Medical imaging devices
• Portable audio players
• Test and measurement equipment
• Automotive infotainment

In conclusion, the OMAPL137CZKBT3 from Texas Instruments is a robust processor that offers an optimal mix of processing power, peripheral integration, and flexibility, making it a top choice for designers looking to develop advanced digital and signal processing systems.
