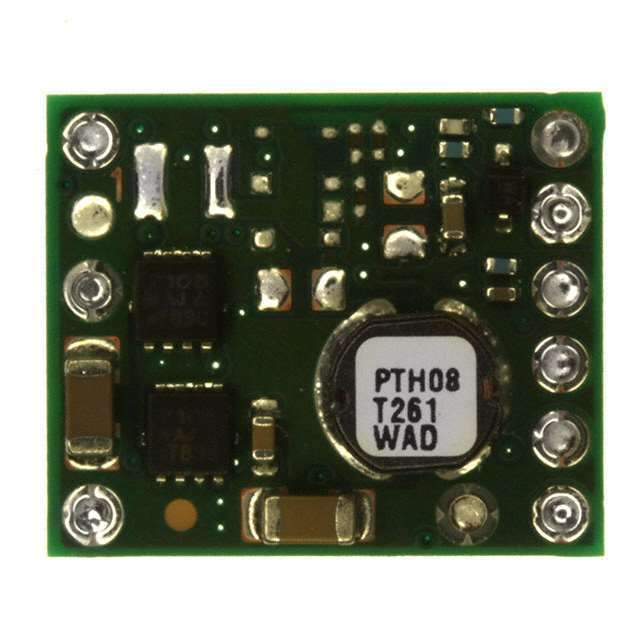

PTH08T261WAD

Part No PTH08T261WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.69-5.5V / 3-A, 4.5-V to 14-V INPUT, NON-ISOLATED, WIDE-OUTPUT, ADJUSTABLE POWER MODULE WITH TurboTrans
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Maximum Input Voltage 14V
Voltage - Output 1 0.69 ~ 5.5V
Current - Output (Maximum) 3A
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 95%
Mounting Style Through Hole
Manufacturer Package 10-DIP Module
Dimension 0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm)
Part Number Series PTH08T261W
Manufacturer Pack Quantity 36
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809337-PTH08T261WAD
Ultra Librarian 3D Model Ultra Librarian PTH08T261WAD CAD Model

Description

The PTH08T261WAD is a high-performance, adjustable, non-isolated power module from Texas Instruments (TI), one of the leading manufacturers in the semiconductor industry. This module is part of TI's extensive range of power management solutions designed for a wide array of applications. The PTH08T261WAD is particularly suitable for high-density applications that require a compact, efficient, and reliable power supply.

Key Features

  • Wide Input Voltage Range: This module operates with an input voltage range of 4.5V to 14V, making it versatile for use in various systems.
  • Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5.5V, allowing for flexibility and precision in voltage regulation to meet the needs of the load.
  • High Efficiency: With an efficiency of up to 96%, the PTH08T261WAD ensures minimal power loss and heat generation, which is crucial for maintaining system reliability and longevity.
  • High Output Current: This module can deliver up to 10A of output current, catering to applications with high power demands.
  • Power Good Output: The inclusion of a 'power good' signal provides a system-friendly interface, indicating when the output voltage is within its nominal value range.
  • Thermal Performance: Enhanced thermal performance is achieved through the use of a double-sided surface mount construction, which helps to dissipate heat effectively.
  • Small Footprint: The compact size of the module (9.0mm x 15.0mm x 2.8mm) allows for efficient use of board space in space-constrained applications.

Applications

The PTH08T261WAD is ideal for a variety of applications including, but not limited to:

  • Telecommunications infrastructure
  • Computing and server systems
  • Networking equipment
  • Industrial systems
  • Test and measurement equipment

Conclusion

In summary, the PTH08T261WAD by Texas Instruments is a robust and efficient power module that offers design flexibility, ease of use, and high performance. Its wide input voltage range, adjustable output, and high efficiency make it an excellent choice for engineers and designers looking to optimize their power systems in various high-demand applications.
