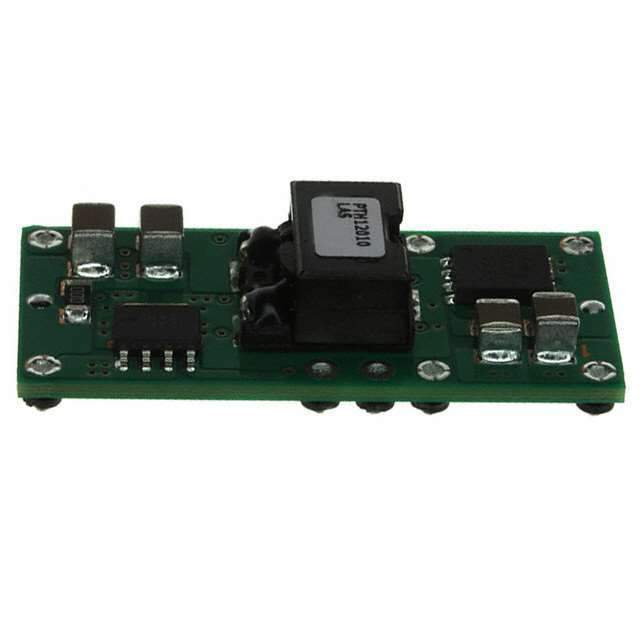

The PTH12010YAZ is a high-performance, non-isolated module designed by Texas Instruments to meet the needs of complex digital systems that require high-efficiency and fast dynamic response in power management. This advanced power module is part of Texas Instruments' extensive range of power management solutions, delivering a flexible approach to managing power requirements across a variety of applications.

Key Features

• Wide Input Voltage Range: The PTH12010YAZ operates with an input voltage range of 10.8V to 13.2V, making it versatile for various applications.
• Adjustable Output Voltage: Its output voltage can be adjusted from 0.9V to 5.5V, providing a customizable solution for different power needs.
• High Output Current: This module is capable of delivering up to 10A of output current, suitable for high-power applications.
• High Efficiency: With an efficiency of up to 95%, the PTH12010YAZ ensures minimal power loss and heat generation.
• Excellent Thermal Performance: The module's innovative design allows for exceptional thermal performance, ensuring reliability even under high power operation.
• Fast Transient Response: It offers a rapid transient response, which is critical for maintaining voltage stability in dynamic load conditions.
• Easy Integration: The PTH12010YAZ comes in a compact, through-hole package that simplifies integration into existing designs.

Applications

Designed for a broad range of applications, the PTH12010YAZ is ideal for use in computing, networking, telecommunications, and industrial systems where power efficiency and reliability are paramount. Its flexible nature allows it to power complex digital ICs such as microprocessors, FPGAs, and DSPs.

Quality and Support

Texas Instruments is known for its commitment to quality and long-term reliability. Customers choosing the PTH12010YAZ can rely on TI's extensive technical support and comprehensive documentation to streamline the product development process.
