Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -40°C to 125°C
Output Type I²C/SMBus
Supply Voltage - Operating 1.4 V to 3.6 V
Resolution 11 b
Features One-Shot, Output Switch, Shutdown Mode
Accuracy - Highest (Lowest) ±2°C (±3°C)
Testing Conditions -25°C to 85°C (-40°C to 125°C)
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)

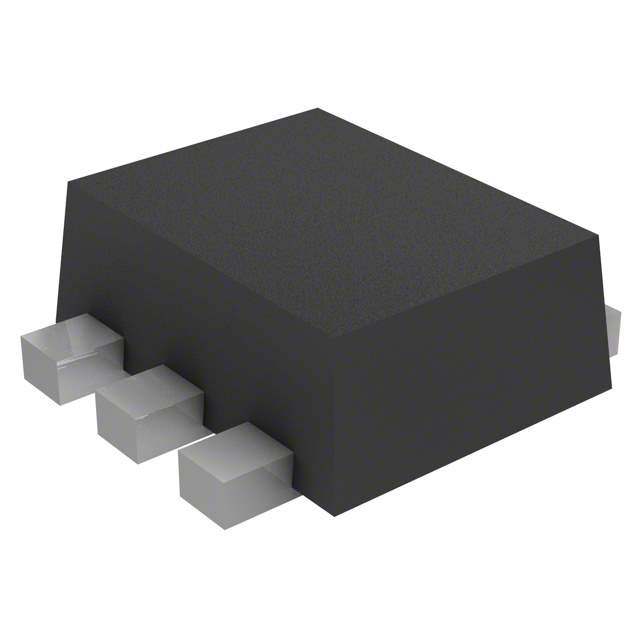

Case / Package SOT-563
Win Source Part Number 033222-TMP102AIDRLR
Family Name HPA0033
Introduction Date April 01, 2007
ECCN EAR99
Country of Origin Thailand, China
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Building Automation, Industrial, Motor Drive & Control, Signal Processing, HVAC, Medical
Ultra Librarian 3D Model Ultra Librarian TMP102AIDRLR CAD Model

Description

Product Overview: TMP102AIDRLR by Texas Instruments

The TMP102AIDRLR is a high-precision digital temperature sensor from Texas Instruments, designed to offer exceptional accuracy and low power consumption in a compact form factor. This sensor is an ideal solution for a wide range of applications, including consumer electronics, environmental monitoring, and industrial control systems, where precise temperature readings are crucial.

Key Features

  • High Accuracy: The TMP102AIDRLR provides a temperature accuracy of ±0.5°C without the need for calibration, ensuring reliable readings from -25°C to 85°C.
  • Low Power: With a typical supply current of 10µA and a shutdown current of 0.1µA, this sensor is optimized for battery-powered and power-sensitive applications.
  • Digital Output: The sensor communicates via a two-wire, SMBus and I2C-compatible interface, which allows easy integration with most microcontrollers and processors.
  • Programmable Resolution: The TMP102AIDRLR offers selectable resolution from 9 to 12 bits, giving designers the flexibility to choose between faster conversion times and higher resolution.
  • Small Footprint: Housed in a tiny SOT-563 package, the sensor takes up minimal board space, making it suitable for space-constrained applications.
  • Wide Temperature Range: Capable of measuring temperatures from -40°C to +125°C, the TMP102AIDRLR can be deployed in environments with extreme temperature variations.
  • Alert Function: An onboard alert function allows the sensor to trigger a temperature alert, which can be programmed to activate at specific temperature thresholds.

Applications

The TMP102AIDRLR's versatility makes it suitable for various applications, including:

  • Portable and wearable devices
  • Environmental monitoring systems
  • Smart home and IoT devices
  • Industrial temperature monitoring and control
  • Medical equipment
  • Data center and server room monitoring

With its precision, low power consumption, and small size, the TMP102AIDRLR from Texas Instruments stands out as a top choice for designers and engineers seeking to incorporate accurate temperature sensing into their projects.
