Products specifications

Categories Sensors, Transducers
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Sensor Type Digital, Local
Sensing Temperature - Local -40°C to 125°C
Output Type I²C/SMBus
Supply Voltage - Operating 1.4 V to 3.6 V
Resolution 7 b
Features One-Shot, Shutdown Mode
Accuracy - Highest (Lowest) ±2°C (±3°C)
Testing Conditions -10°C to 100°C (-40°C to 125°C)
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)

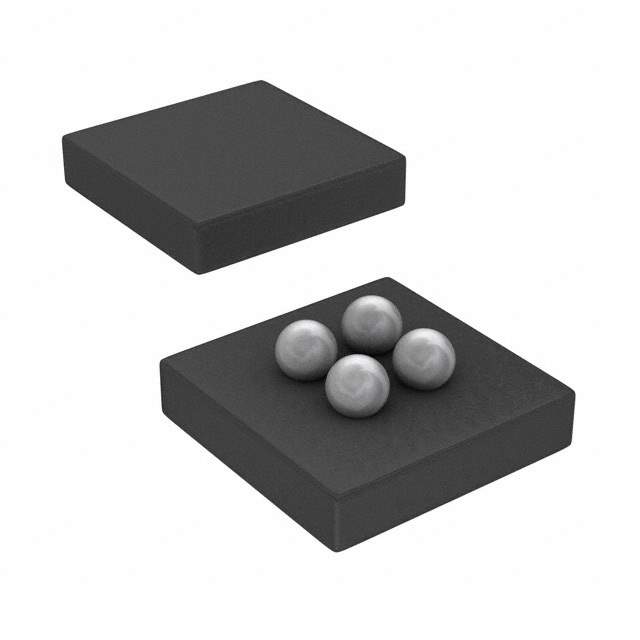

Case / Package 4-DSBGA (1x1)
Win Source Part Number 033228-TMP103EYFFR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TMP103EYFFR CAD Model

Description

The TMP103EYFFR is a high-precision digital temperature sensor from Texas Instruments, designed for optimal thermal monitoring in a variety of applications. It is part of TI's extensive portfolio of temperature sensors that cater to the growing need for accurate temperature readings in modern electronic systems.

Key Features

  • Accuracy: The TMP103EYFFR offers an impressive accuracy of ±1°C (max) from –40°C to 125°C, ensuring reliable temperature measurements in critical applications.
  • Size: Housed in a compact 4-ball WCSP (DSBGA) package, this sensor is ideal for space-constrained applications where footprint is at a premium.
  • Interface: It features an I2C/SMBus interface that supports up to four devices on one bus, making it a versatile choice for systems requiring multiple temperature monitoring points.
  • Low Power: The TMP103EYFFR is designed for energy-efficient operation, with a typical supply current of just 3 µA, which is beneficial for battery-powered devices.
  • Supply Voltage: It operates over a wide supply voltage range from 1.4V to 3.6V, accommodating various power rails within electronic systems.

Applications

The TMP103EYFFR is suitable for a broad range of applications, including but not limited to:

  • Portable Consumer Electronics
  • Telecommunication Systems
  • Medical Equipment
  • Industrial Controls
  • Computing Devices

Why Choose TMP103EYFFR?

With its high accuracy, small size, and low power consumption, the TMP103EYFFR is an excellent choice for engineers and designers looking to integrate temperature sensing into their projects. Texas Instruments' commitment to quality and performance ensures that this temperature sensor will deliver reliable readings, contributing to the overall stability and safety of the systems it is integrated into.

Whether you're developing a sophisticated medical device or a robust industrial control unit, the TMP103EYFFR provides the temperature monitoring capabilities you need in a tiny, power-efficient package.
