Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 14V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Dissipation - Pd 40W
Power Line Protection Yes
Applications HDMI
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 10-SON (2.5x1)
Win Source Part Number 033554-TPD4E05U06DQAR
Family Name TPD4E05U06
Introduction Date November 15, 2012
ECCN EAR99
Country of Origin China, Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TPD4E05U06DQAR CAD Model

Description

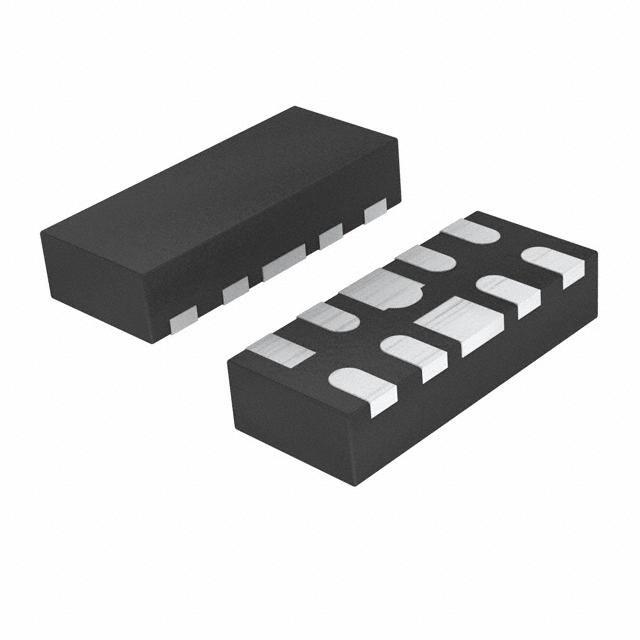

TPD4E05U06DQAR from Texas Instruments is a TVS diode array used to help protect sensitive electronics from electrostatic discharge and other transient events on high-speed or exposed signal lines. It is commonly considered for portable devices, industrial control interfaces, consumer electronics, and communication ports where board-level protection is needed without adding major design complexity. Engineers often evaluate parts in this category when they need compact surge and ESD protection near connectors, external interfaces, or vulnerable IC pins. As a Texas Instruments device, it fits well in designs that prioritize recognized semiconductor sourcing and application support. The current lifecycle status for this part is listed here as unknown, so teams should confirm availability and long-term supply directly with Texas Instruments or authorized distributors before locking it into new designs. RoHS compliance information is not available in the provided input, and engineers should verify the latest compliance declarations, datasheet details, and material content documentation from the manufacturer.
