TPS51275RUKR: A Dual-Synchronous Step-Down Controller from Texas Instruments

The TPS51275RUKR is a high-performance, dual-synchronous step-down controller designed and manufactured by Texas Instruments. It is engineered to provide a cost-effective, efficient power management solution for systems requiring multiple supply voltages. This device is particularly suited for notebook and laptop computers, but it also finds applications in televisions, set-top boxes, and other embedded systems.

Key Features

• Wide Input Range: The TPS51275RUKR operates with an input voltage range from 3V to 28V, making it versatile for various applications.
• Adjustable Output: It offers adjustable output voltages from 0.752V to 5.5V, providing flexibility for different system requirements.
• High Efficiency: With its integrated 5A peak MOSFET drivers, the device ensures high efficiency and reduces power loss.
• Dual Channels: The controller features two synchronous buck regulators that allow for independent output voltage regulation.
• Power Saving Modes: It supports both D-CAP™ and ECO-mode™, which help in reducing power consumption during light-load conditions.
• Protection Features: The TPS51275RUKR includes over-voltage, under-voltage, and over-current protections to safeguard the system against various fault conditions.

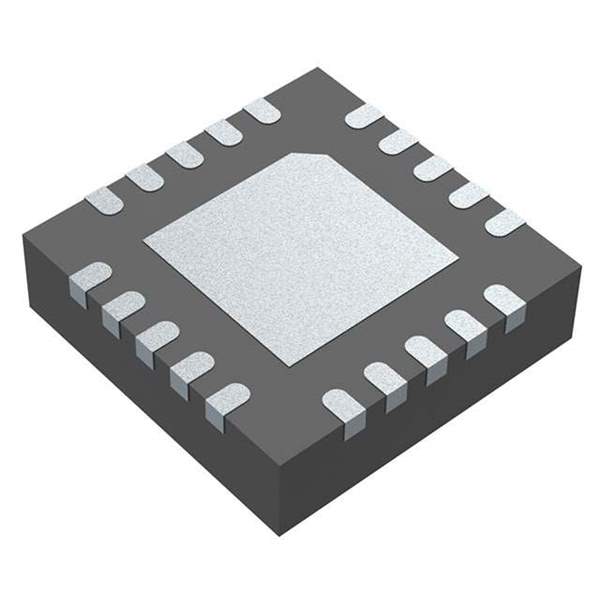

• Small Package Size: Available in a 20-pin WQFN (RUK) package, it is designed for compact PCB layouts.

Applications

The versatility of the TPS51275RUKR makes it suitable for a wide range of applications, including:

• Notebook and Laptop Computers
• Televisions
• Set-top Boxes
• Networking and Telecommunication Equipment
• Embedded Systems

As a product of Texas Instruments, the TPS51275RUKR is backed by the company's commitment to high-quality components and a strong support network. Its combination of efficiency, flexibility, and protection features make it an ideal choice for designers looking to optimize power management in their next project.
