The 2SA1020-O(TE6 is a PNP bipolar junction transistor (BJT) manufactured by Toshiba Semiconductor and Storage. BJTs are three-terminal semiconductor devices used for amplification and switching. The 'O' in the part number designates a specific gain rank, and the '(TE6' likely indicates a specific packaging or manufacturing variation.

Applications

• Audio amplifiers
• Switching circuits
• General-purpose amplification
• Signal processing circuits
• Driver stages

Features

• PNP transistor: Designed for sourcing current.
• High collector current capability
• Low saturation voltage
• Good linearity
• Small signal amplification

Benefits

• Efficient amplification
• Reliable switching performance
• Versatile for numerous circuit applications
• Simple integration
• Cost-effective solution

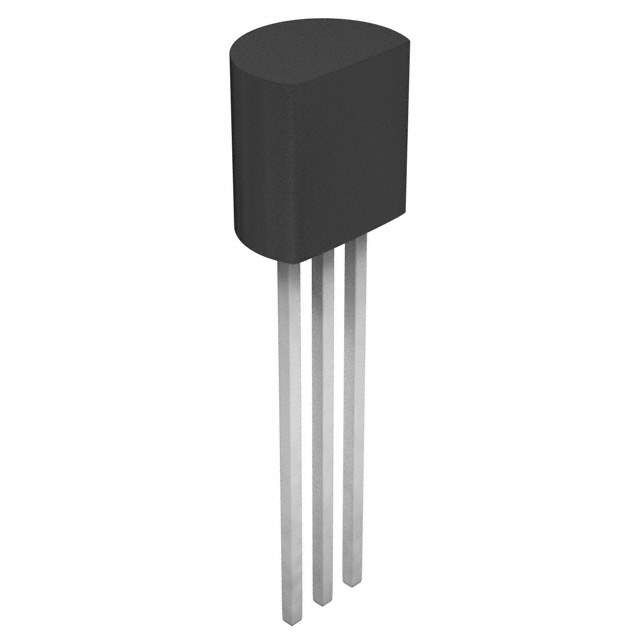

The 2SA1020 typically has a collector-emitter voltage (VCEO) rating of -50V, a collector current (IC) rating of -800mA, and a power dissipation of 800mW. The DC current gain (hFE) is typically within a specified range depending on the gain rank ('O' in this case). The transistor is usually packaged in a TO-92 package. Please refer to the manufacturer's datasheet for precise electrical characteristics, thermal ratings, and mechanical dimensions.
